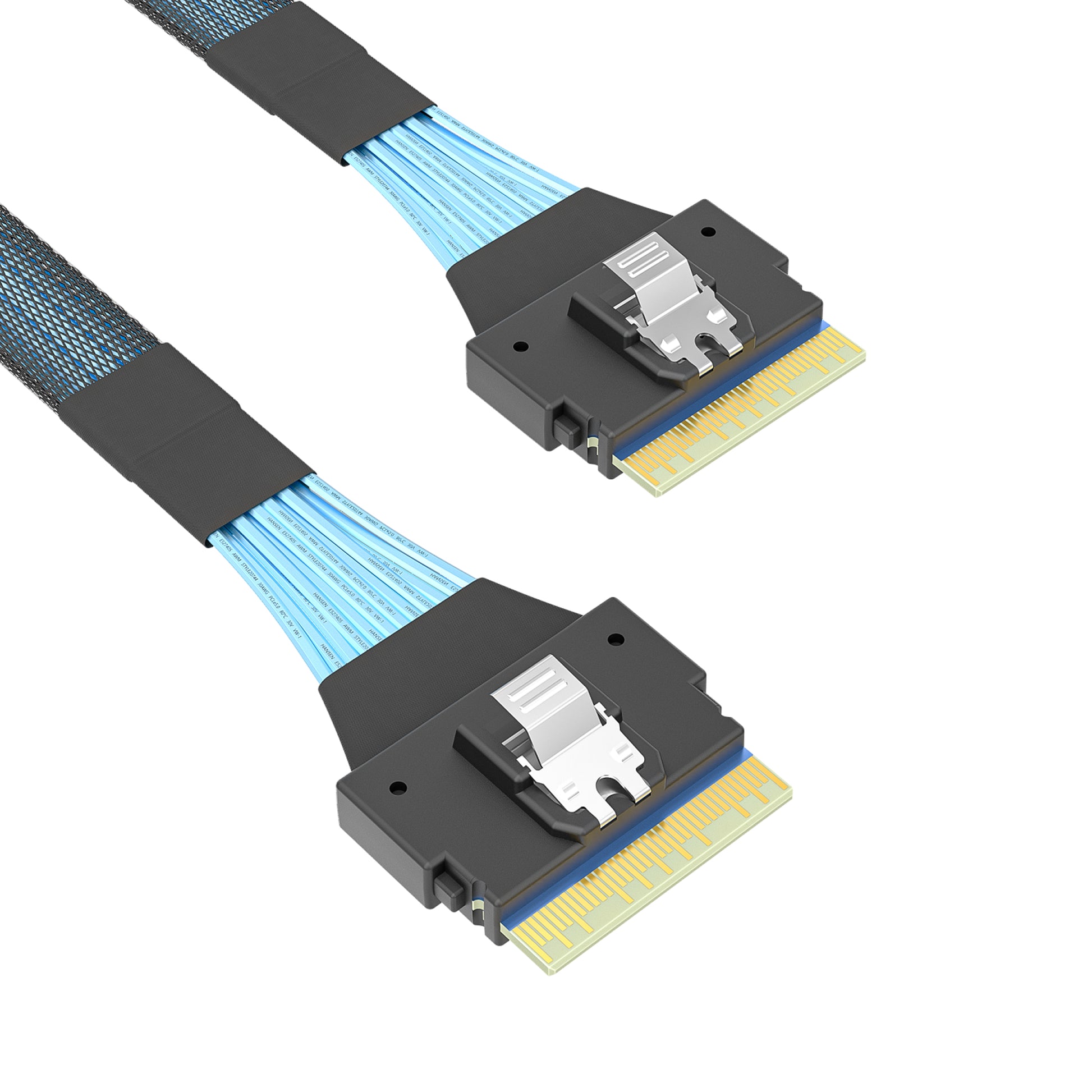

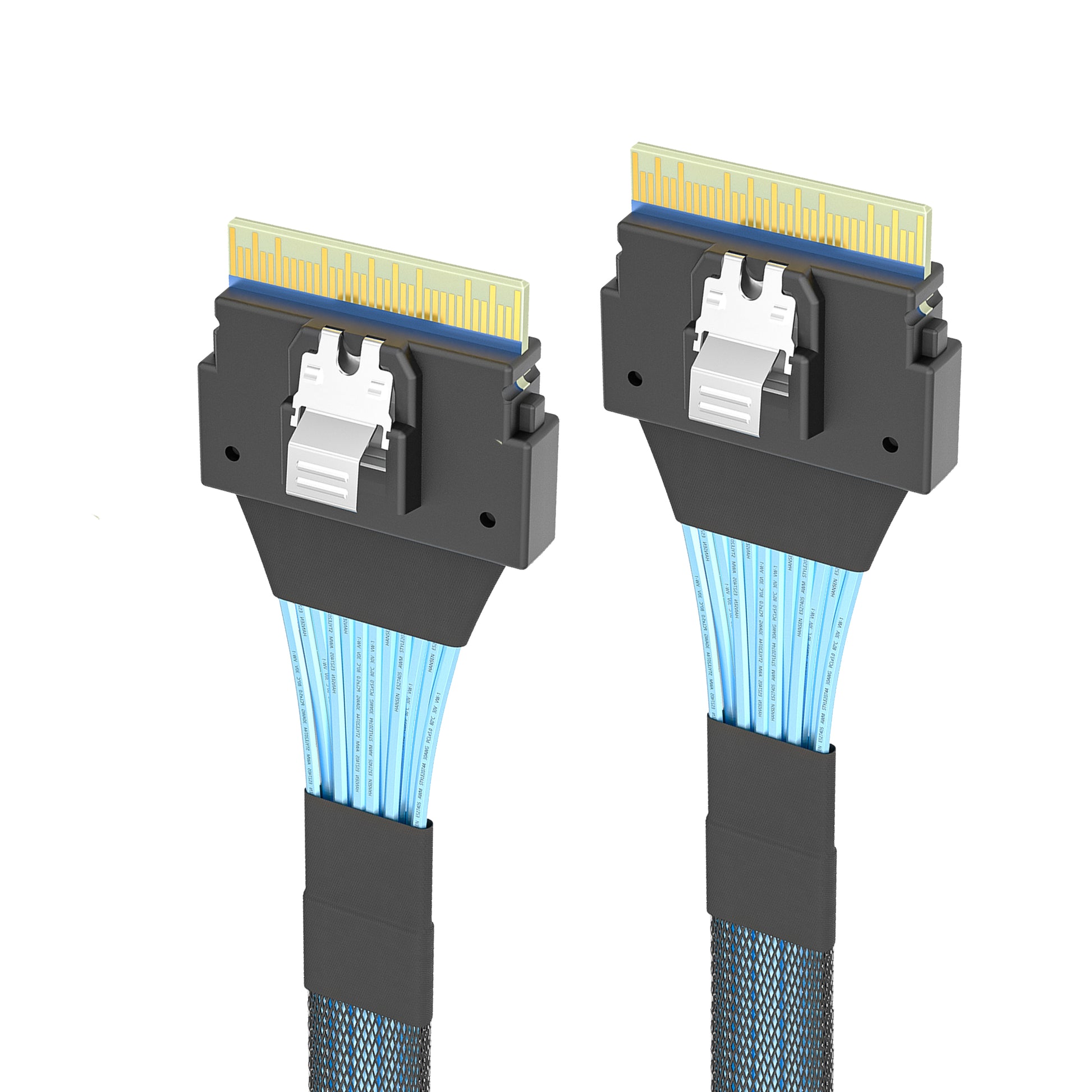

Cruxtec SlimSAS SFF-8654 8i Cable
The SlimSAS SFF-8654 is a high-density connector designed for unshielded internal or external I/O applications, compliant with the Serial Attached SCSI (SAS) 4.0 standard. Featuring a compact and low-profile form factor, it supports multiple high-speed data transmission protocols, including UPI 1.0 at 11.2 GT/s, SAS 4.0 at 24 Gbps, PCIe 4.0 at 16 GT/s, and OpenCAPI at 25 Gbps. It is engineered for versatile component integration and optimized for high-performance server and data center environments.
Tech Specs
Tech Specs
Product Type: SAS Server Disk Array Data Cable
Interface: SlimSAS SFF-8654 8i to SlimSAS SFF-8654 8i
Connector Orientation: Straight to Straight (180° to 180°)
Compliance: SAS 4.0 and SlimSAS SFF-8654 Standards
Application Fields: Servers, Data Storage Systems, Workstations
Data Rate Support:
UPI 1.0: Up to 11.2 GT/s per lane
SAS 4.0: Up to 24 Gbps
OpenCAPI: Up to 25 Gbps
PCIe 4.0: Up to 16 GT/s
Mating Force: Max. 55.5 N
Unmating Force: Max. 49 N
Durability Rating: Minimum 250 mating cycles
Voltage Rating: 30V DC per contact
Dielectric Withstanding Voltage: Minimum 300 VDC for 100 ms
Insulation Resistance: Minimum 10 MΩ between adjacent contacts
Signal Integrity (Differential Impedance): 100 ±10% ohms
Signal Integrity (Common Mode Impedance / Insertion Loss / Crosstalk): Conforms to SAS 4.0 specifications
Warranty
Warranty
1 Year
