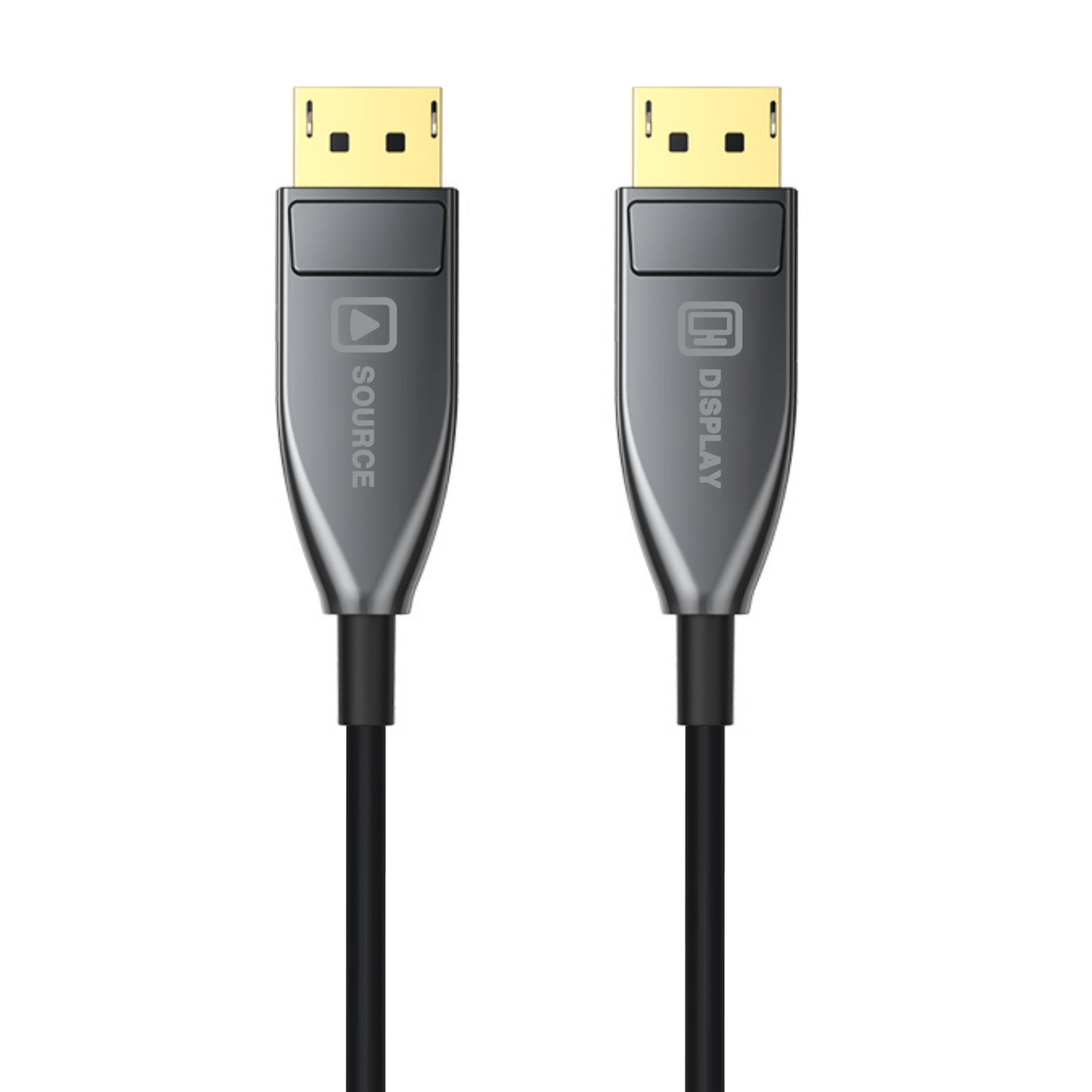

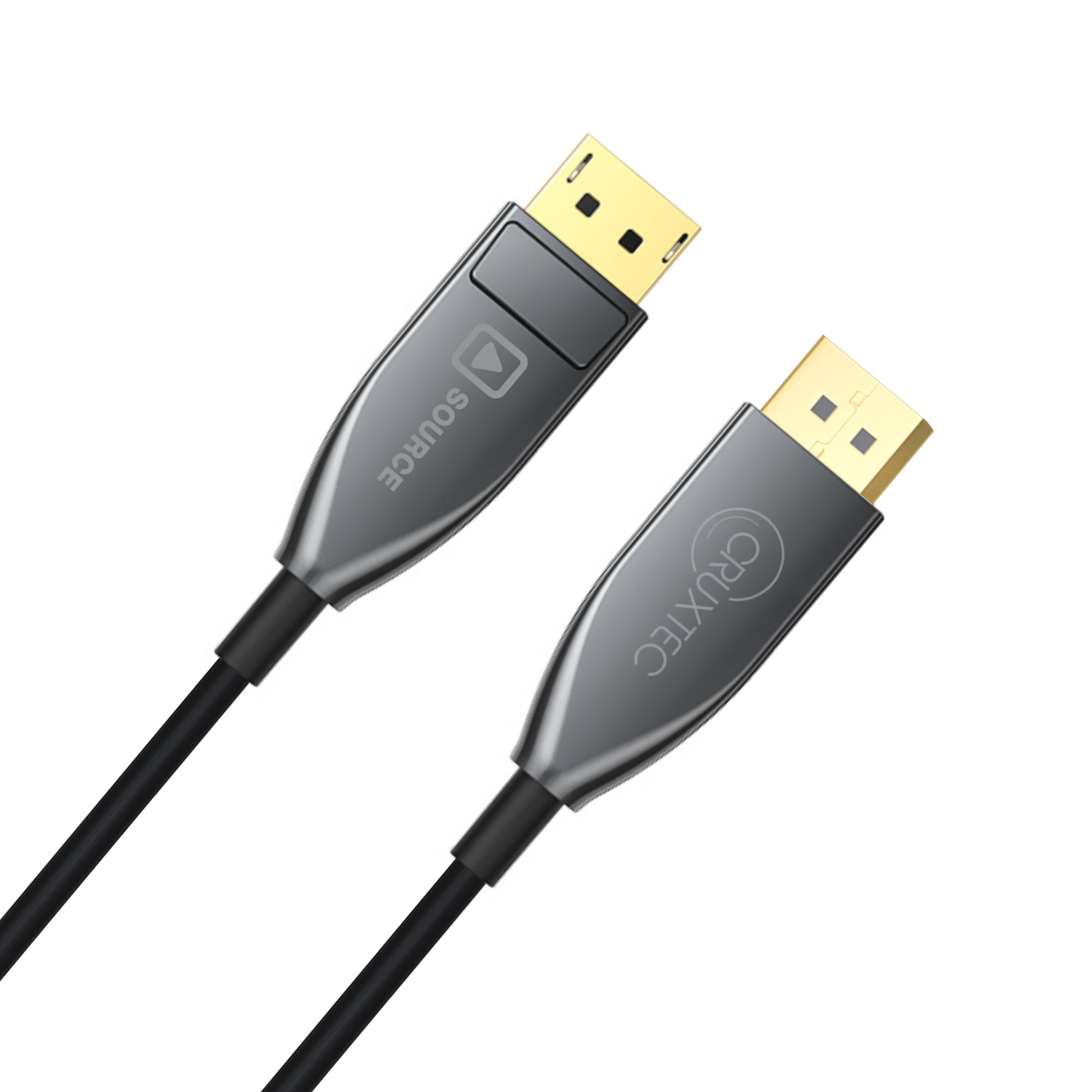

Cruxtec DisplayPort 1.4 8K Active Optical Fiber Male to Male Cable 32.4Gbps ( 8K@60Hz, 4K@120Hz )
1) Zinc alloy housing
2) Gold plated connectors
3) DP 1.4 32.4Gbps, Maximum Resolution: 8K@60Hz, 4K@144Hz, 2K@165Hz
4) Optical Fiber Transmission Advantage, Strong flexibility ensures long-term crimp storage or wiring does not affect signal transmission
5) Breakthrough the length limit, non-destructive transmission without interference
6) Supports HDR, 3D, DSC, VRR
7) Kevlar is used as the central strength member on fiber optic cables, it provides additional protection for the fibers from the environment
8) German Silicom line Chipsets and American VCSEL II VI
Tech Specs
Tech Specs
1) Pin plating: Gold
2) Bandwidth: DisplayPort 1.4 32.4Gbps AOC
3) Maximum Resolution: 8K@60Hz, 4K@144Hz, 2K@165Hz

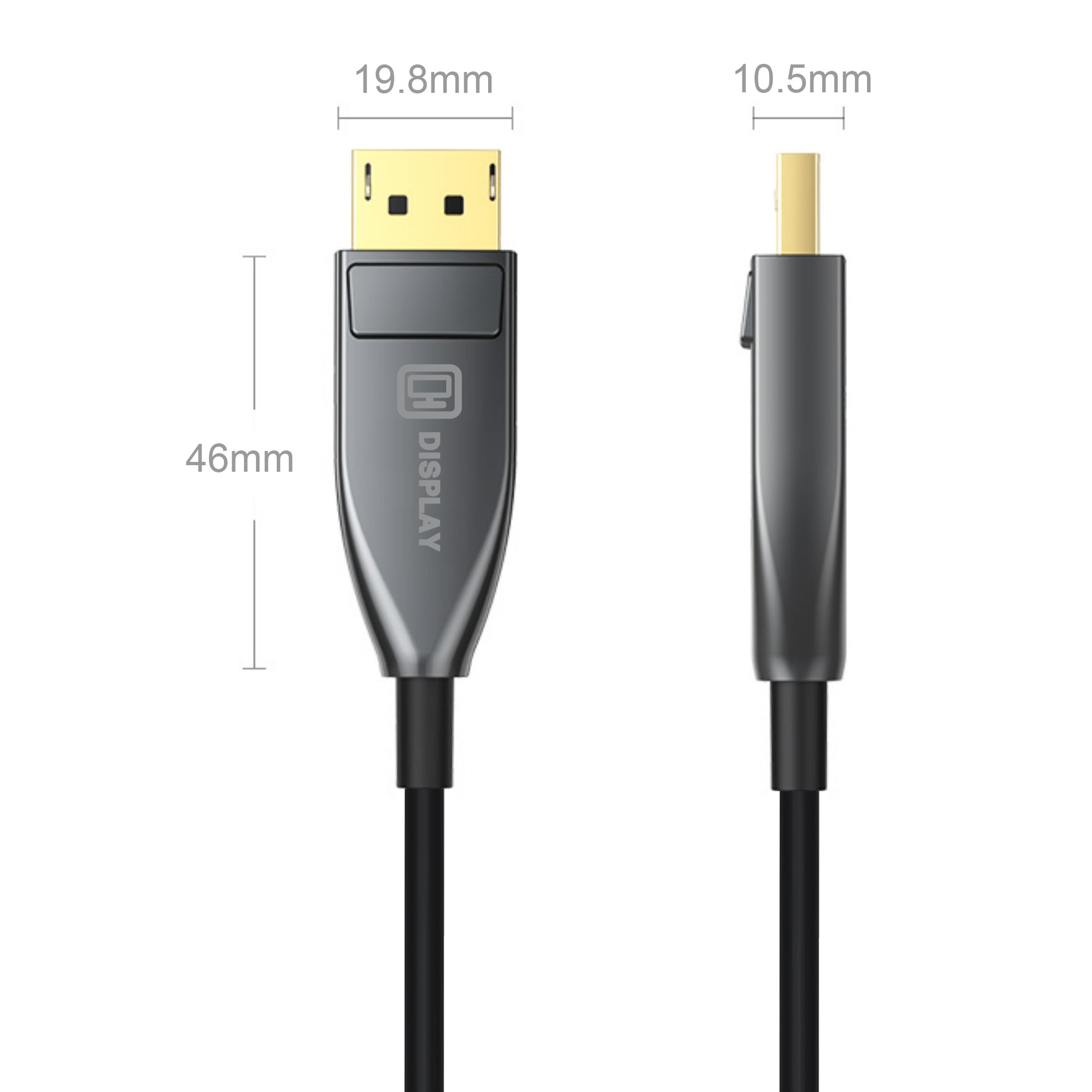

4) Connectors: DisplayPort Male to Male ( Modular copper bush reinforced )
5) Cable length: 10/15/20/30/50m
6) Colour: Black
7) Chipsets: Silicom line (Germany)
8) VCSEL: II VI (America)
9) Cable Diameter (OD): 4.8mm
10) Power Consumption: Source (85mW@3.3V), Display (290mW@3.3V)
11) Shield Type: Aluminium foil shielding
12) Conductor Type: OM3 multimode 4-core optical fiber
13) Supports HDR, 3D, DSC, VRR
Warranty
Warranty
1 Year

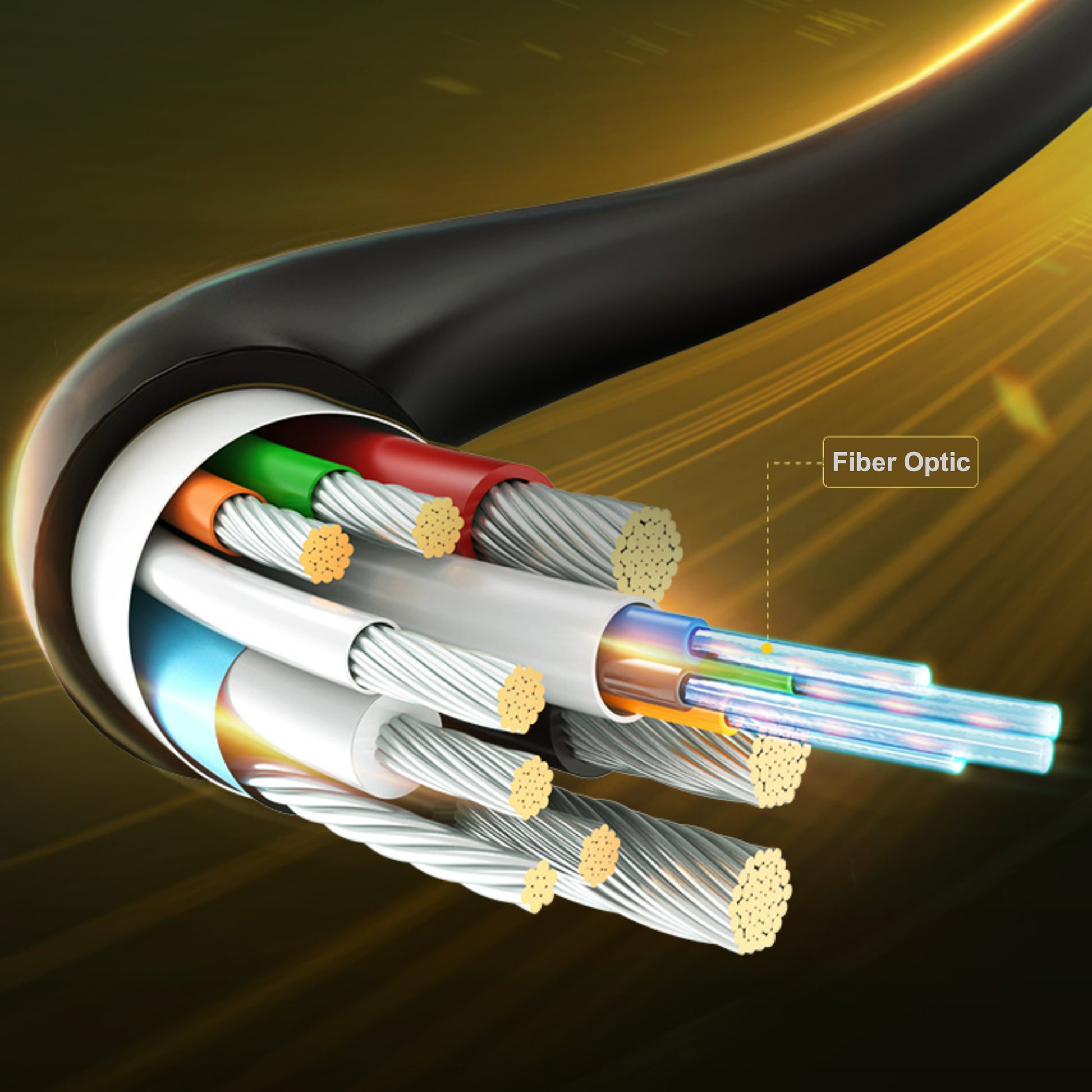

Optical Fiber Cable
Breakthrough the length limit, non-destructive transmission without interference
DP 1.4 compliant
Supports up to 8K@60Hz and 4K@120Hz resolution over the DP1.4 32.4Gbps Ultra High Speed specification

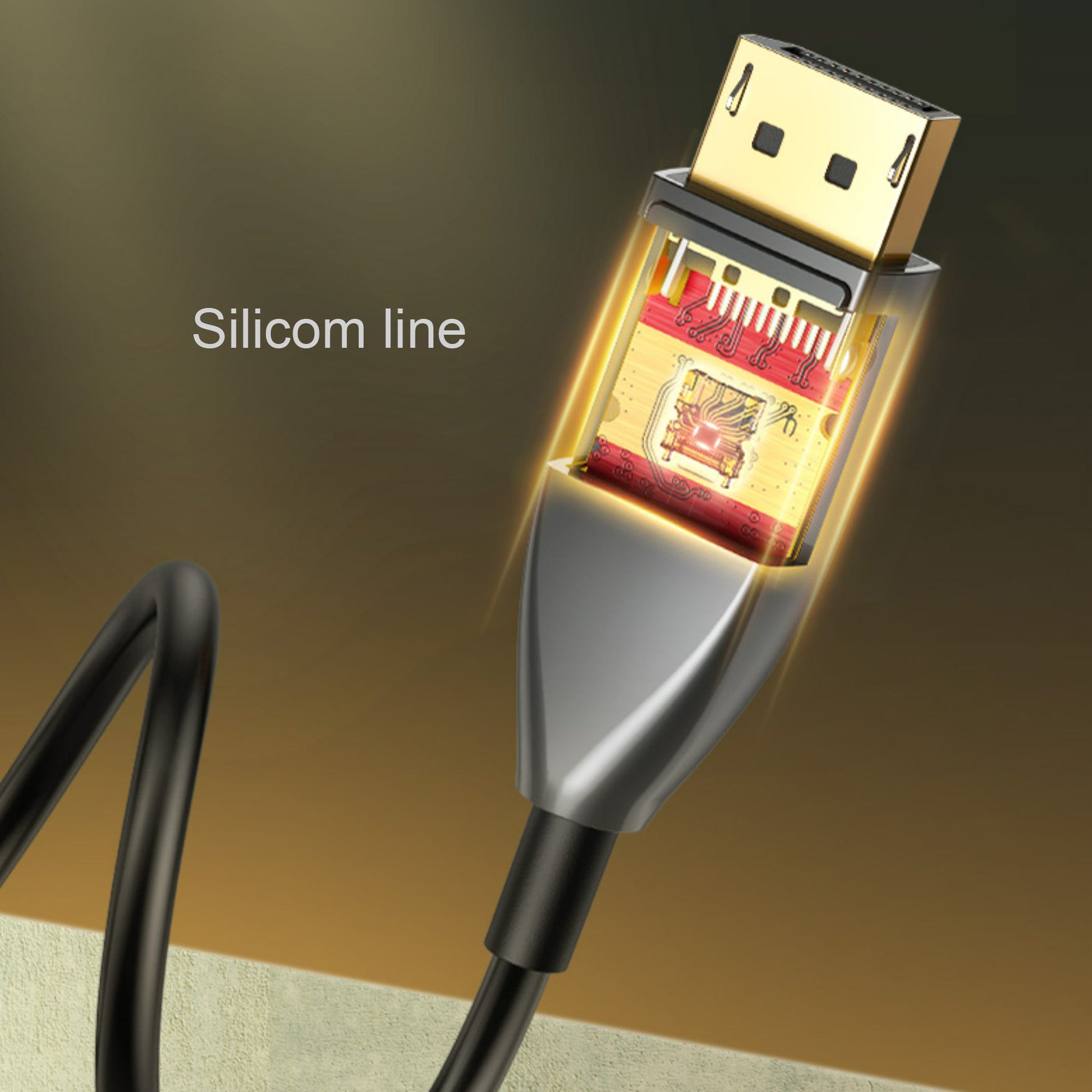

German Silicom line Chipsets and American VCSEL II VI

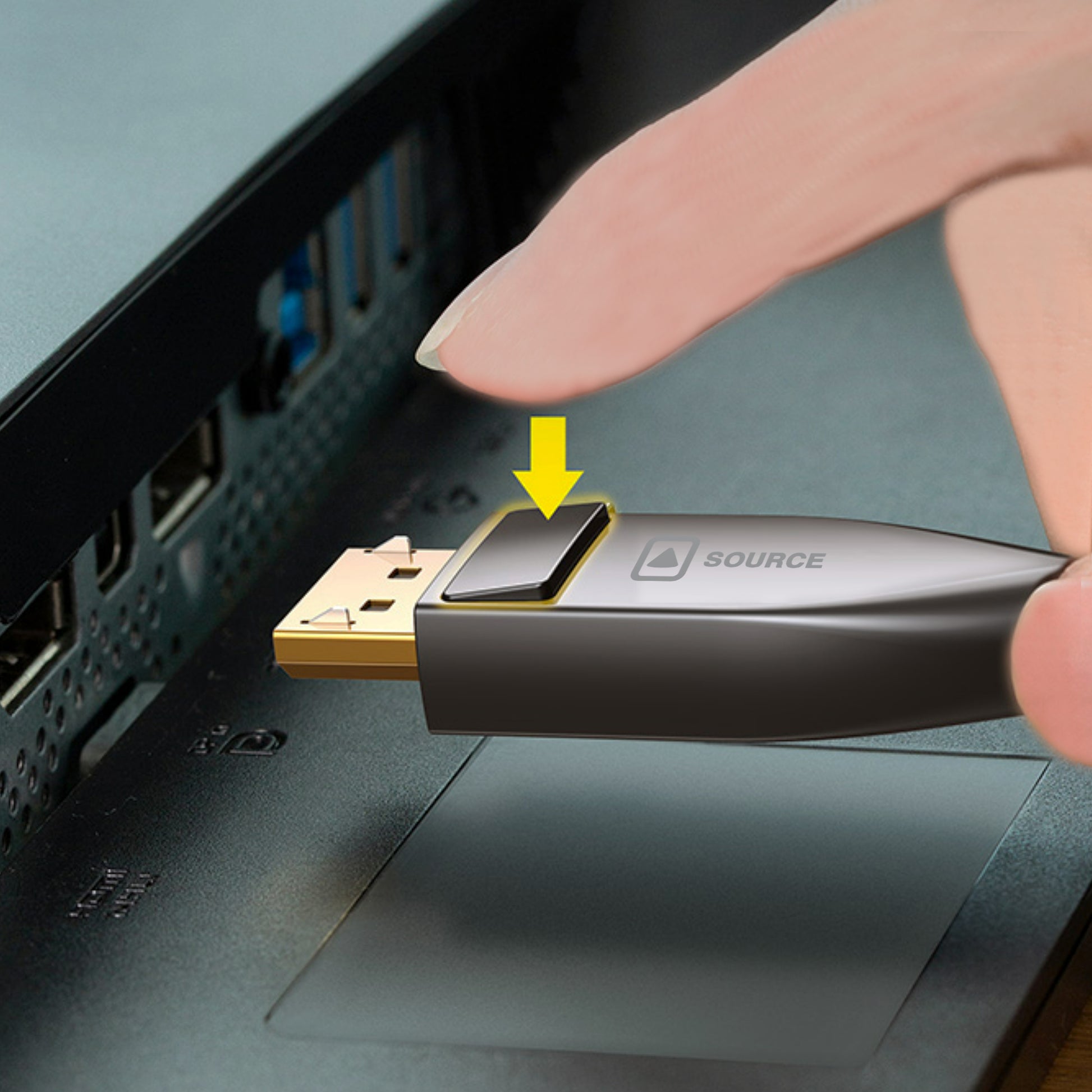

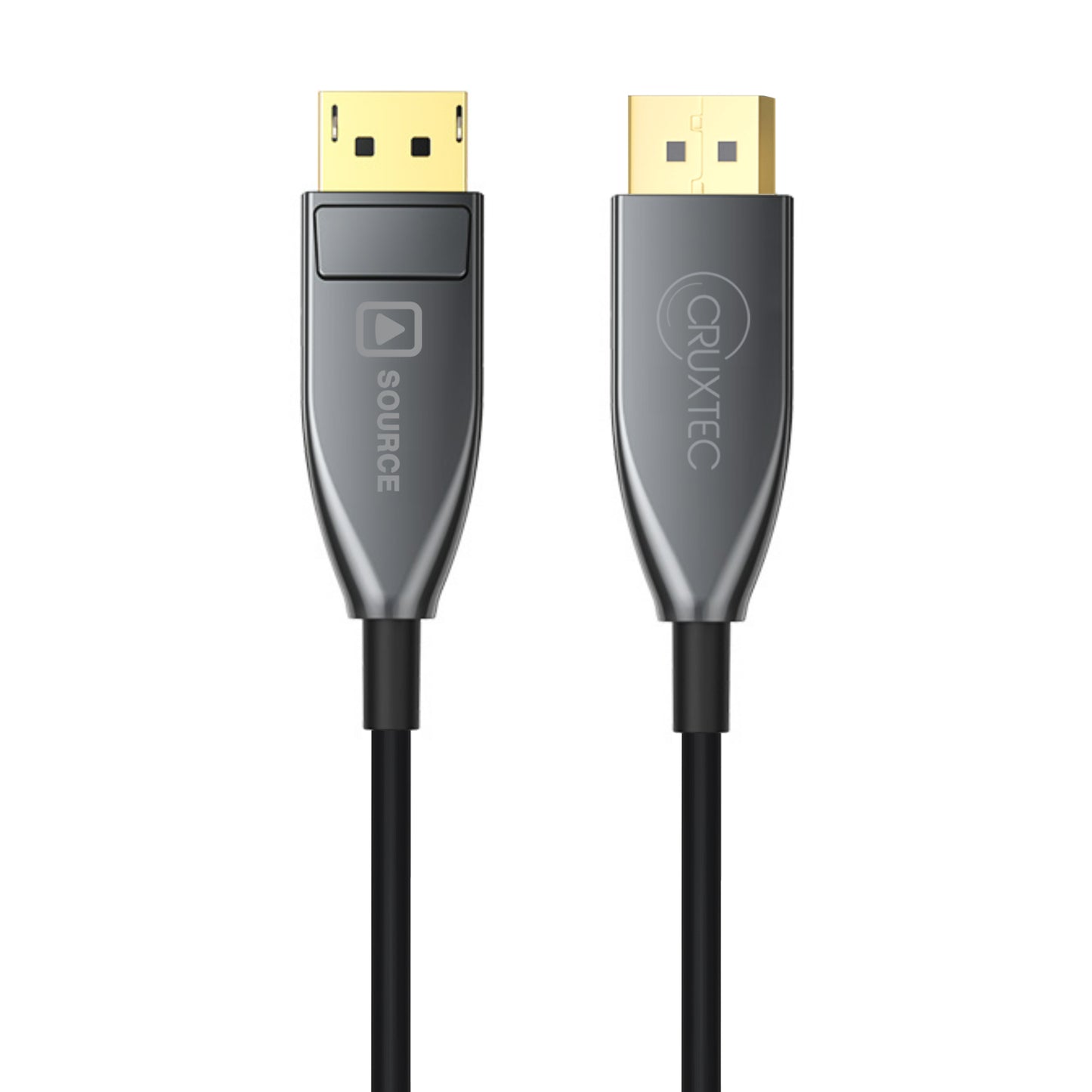

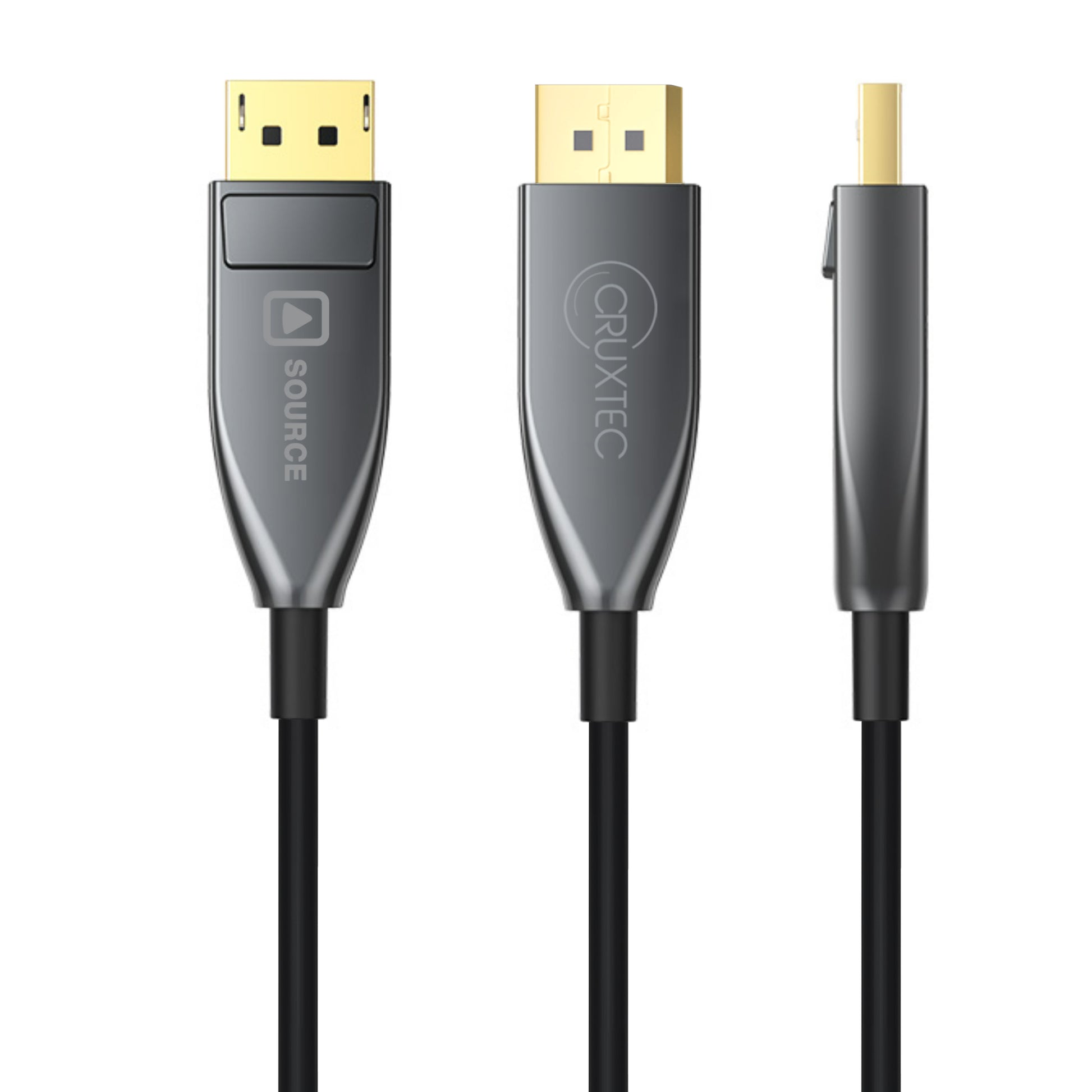

The latches ensures a secure connection.

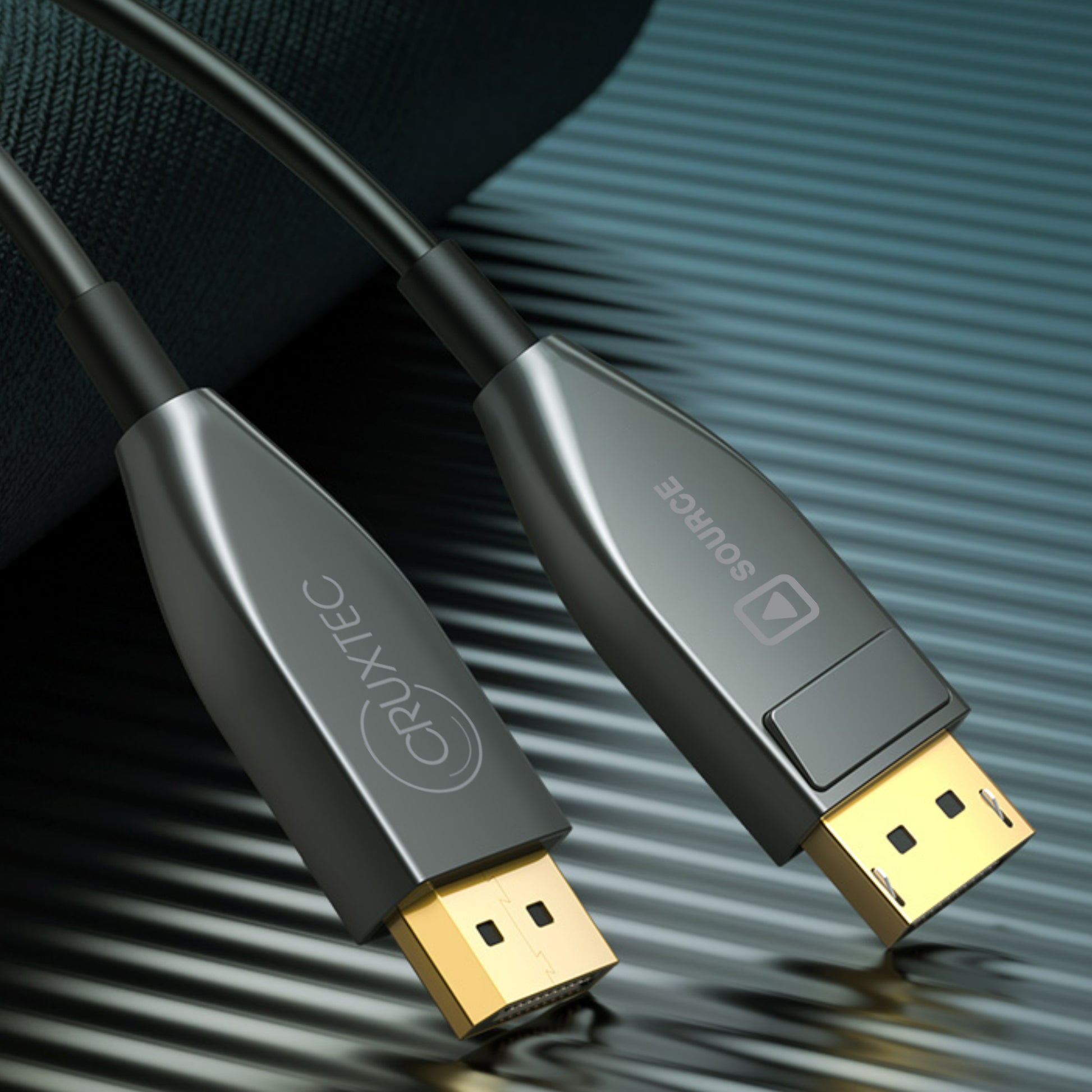

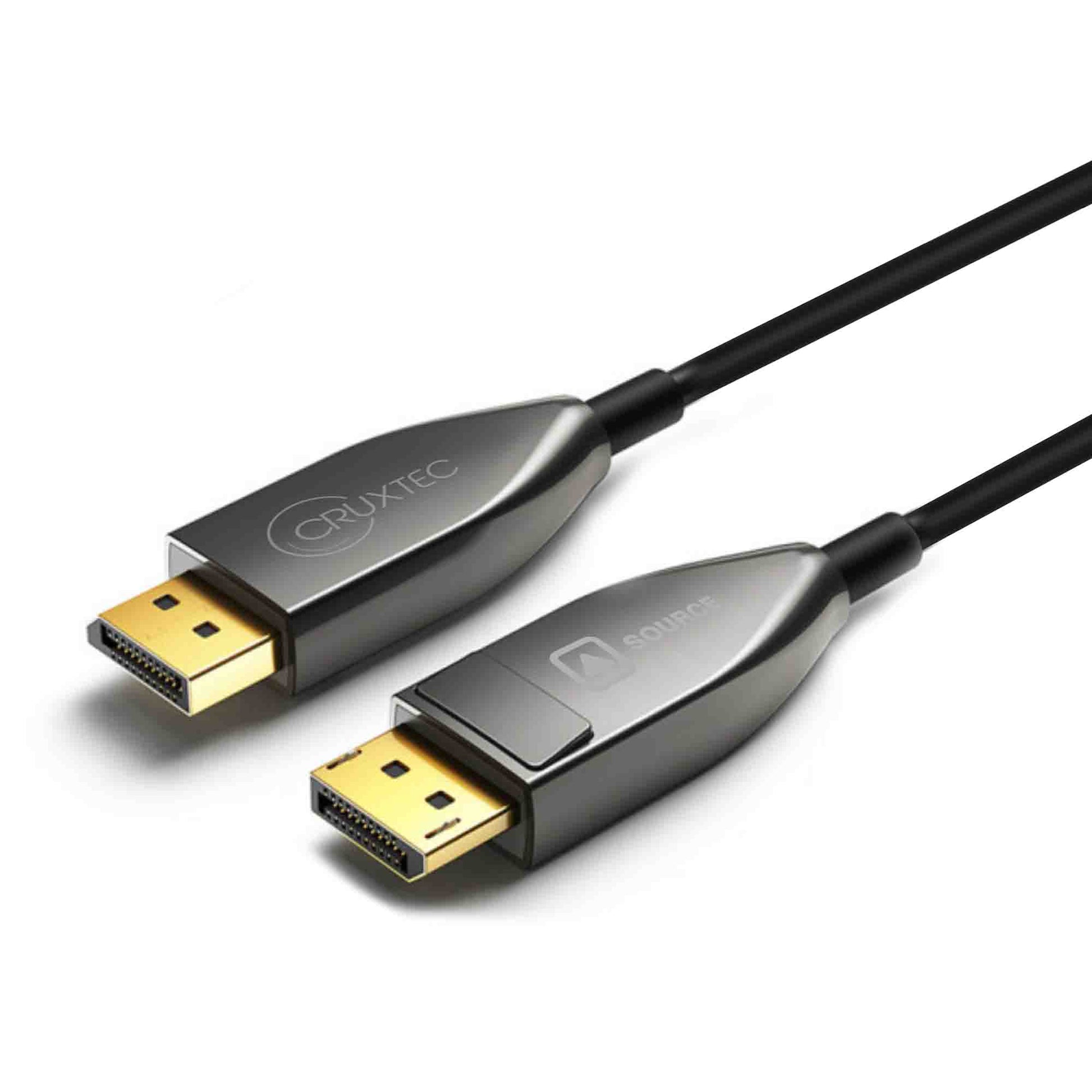

Gold-plated Connectors & Zinc Alloy Housing
It is highly conductive and durable
Kevlar is used as the central strength member on fiber optic cables
It provides additional protection for the fibers from the environment

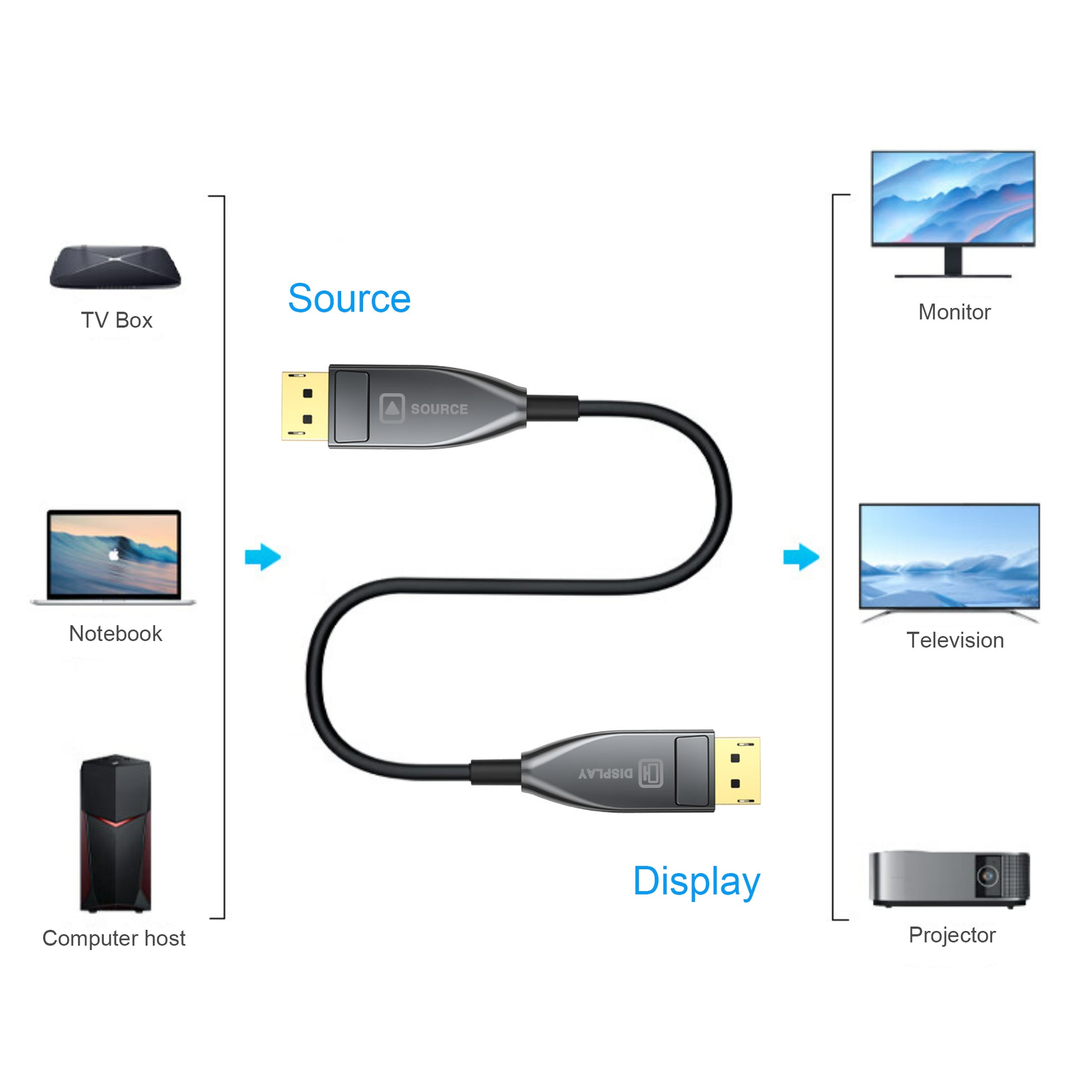

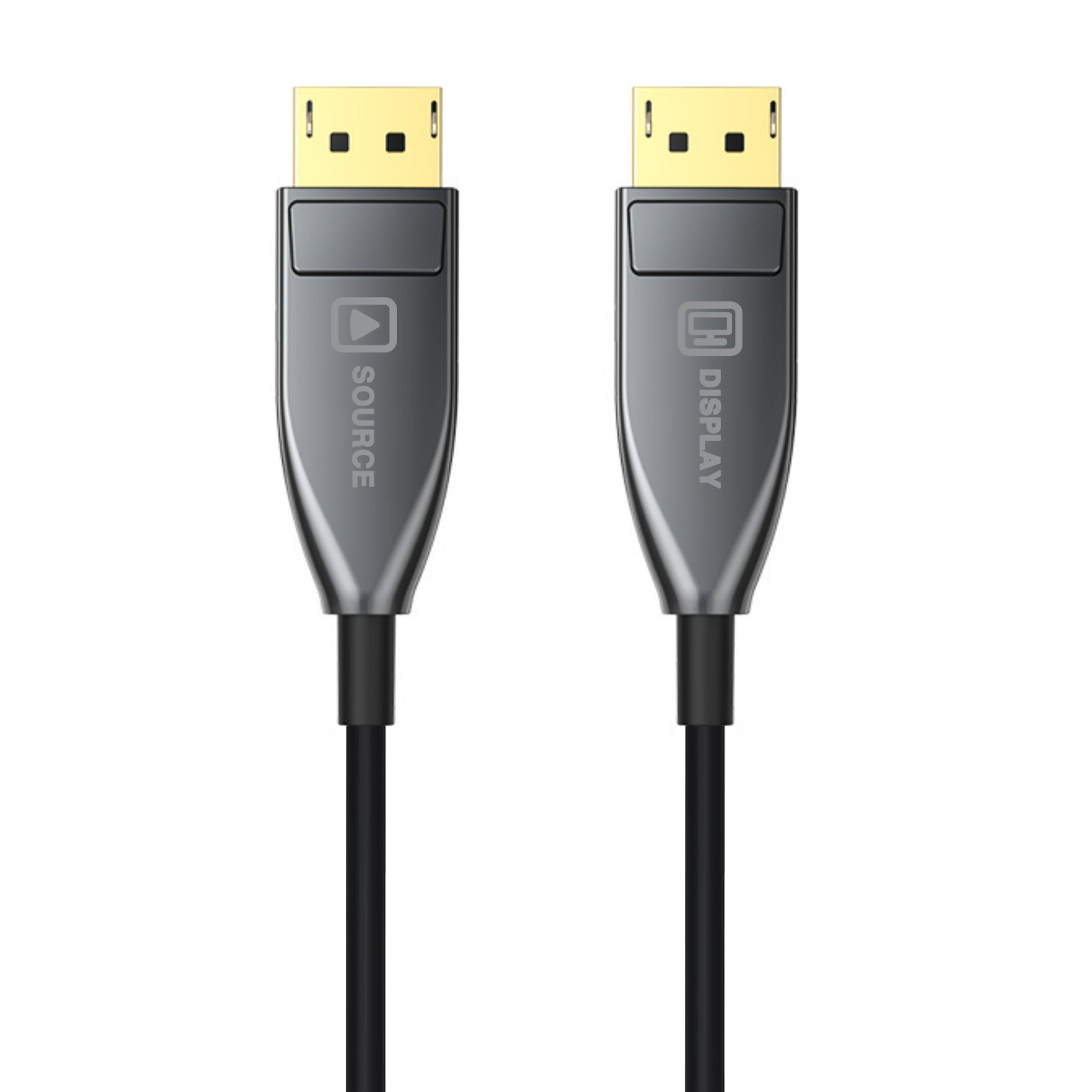

Fiber DisplayPort with one-way transmission

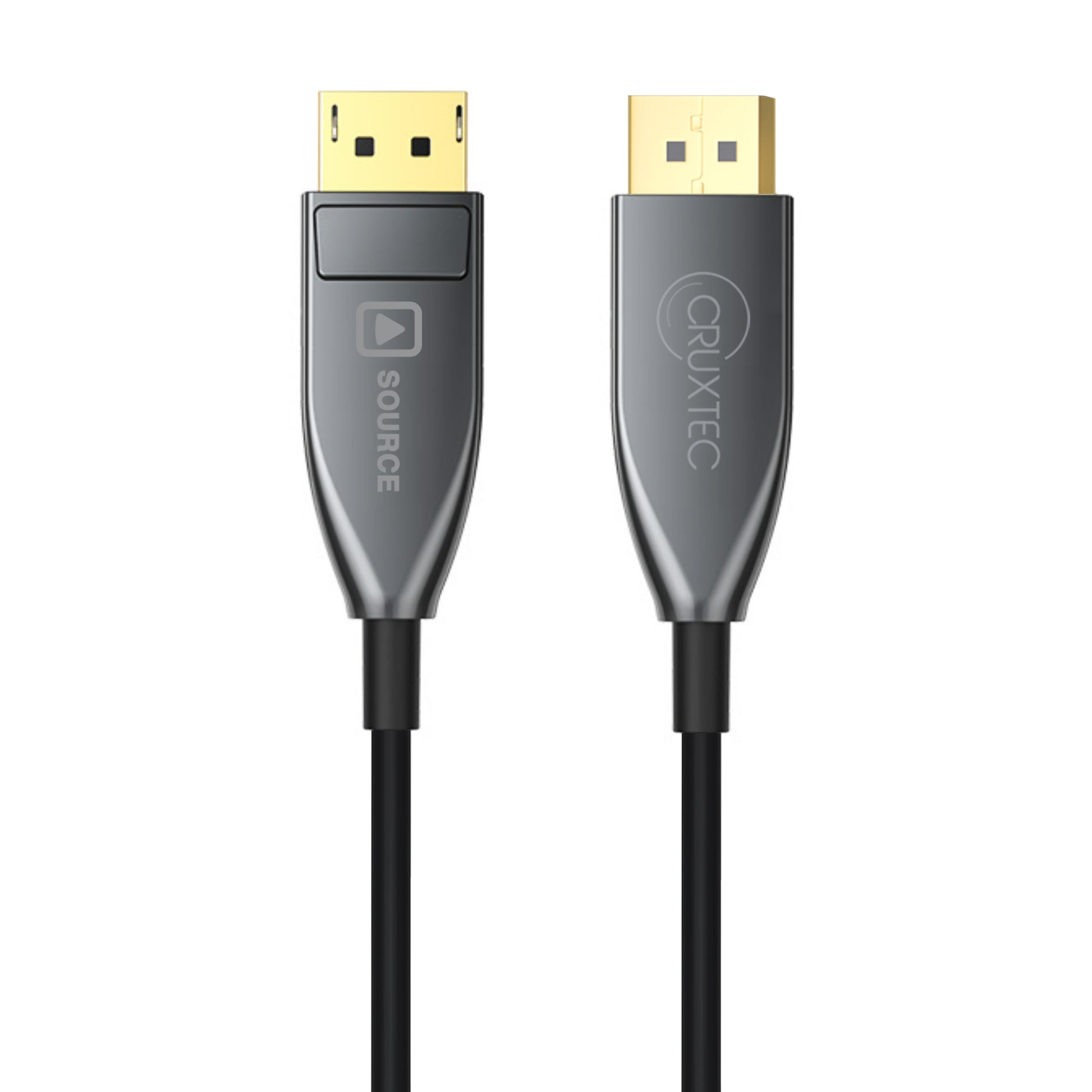

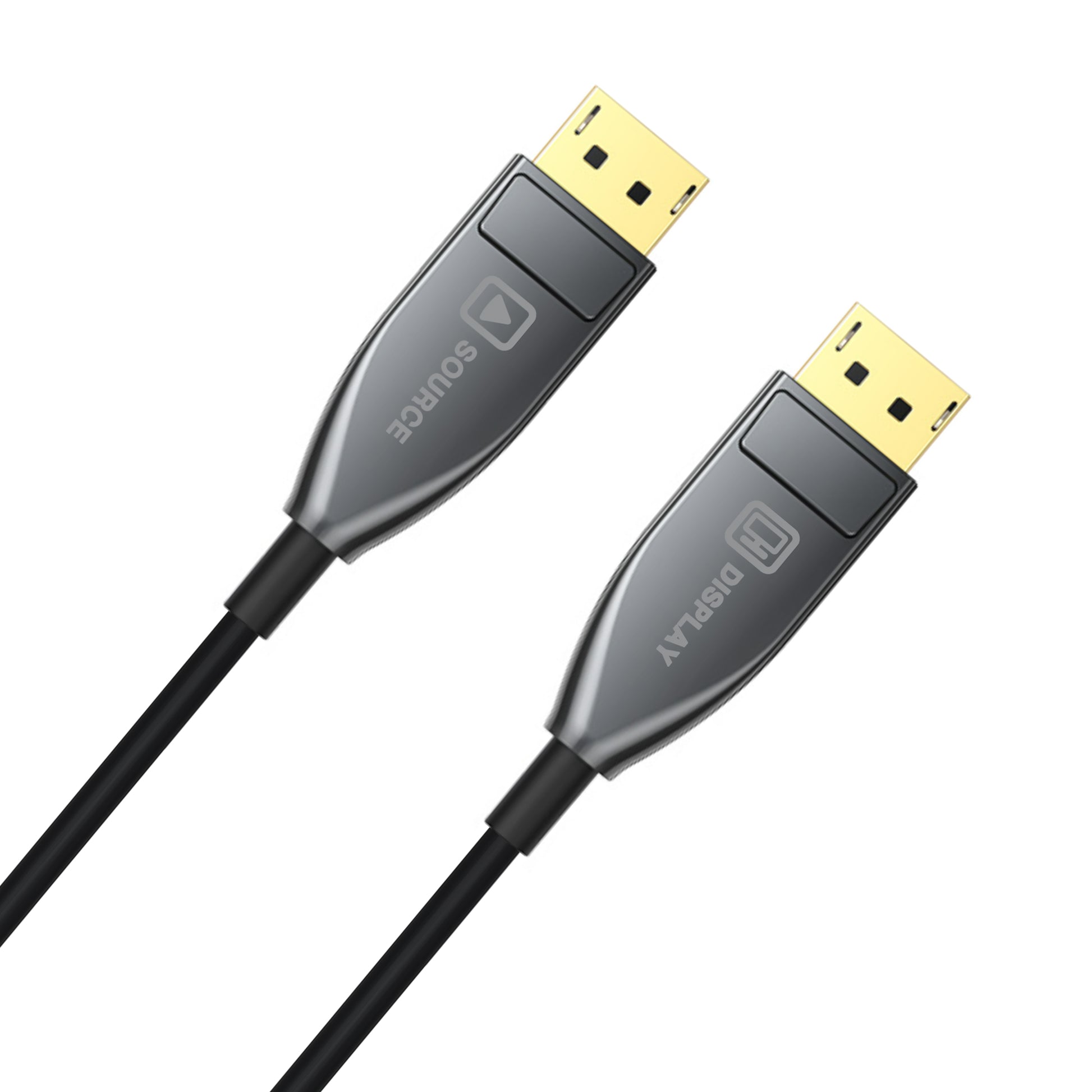

"Source" plug for connecting DP source port, (Input Devices like blu-ray player, PC, Desktop, etc). "Display" Plug for connecting DP display device, (Output Devices like HDTV, monitor, projector etc). Plug and play,Widely Compatibility
Supports HDR, 3D, DSC, VRR
Suitable for a variety of high-quality audio and video transmission
Simple and Elegant Packaging
Imaginative design and new materials are the key to more sustainable
