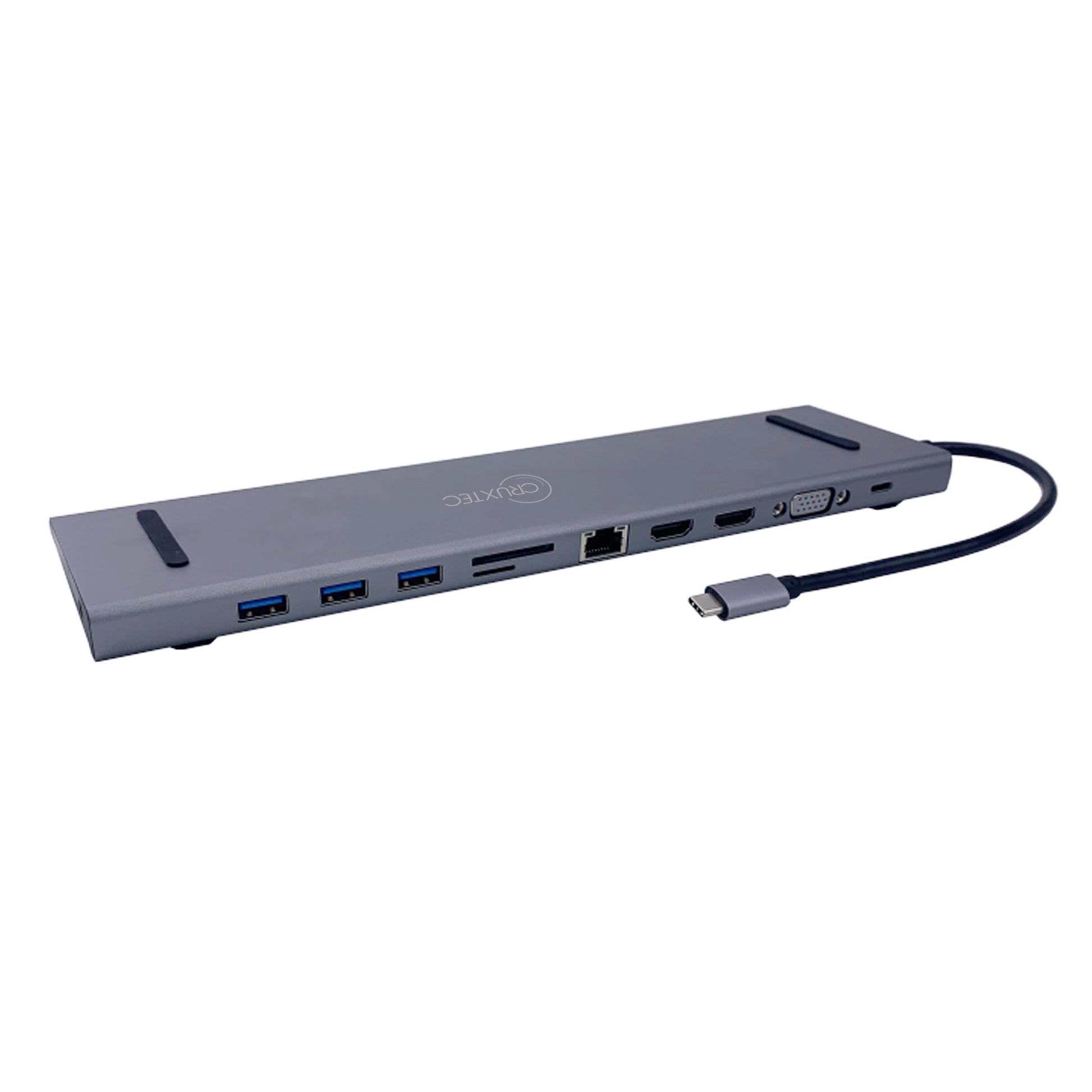

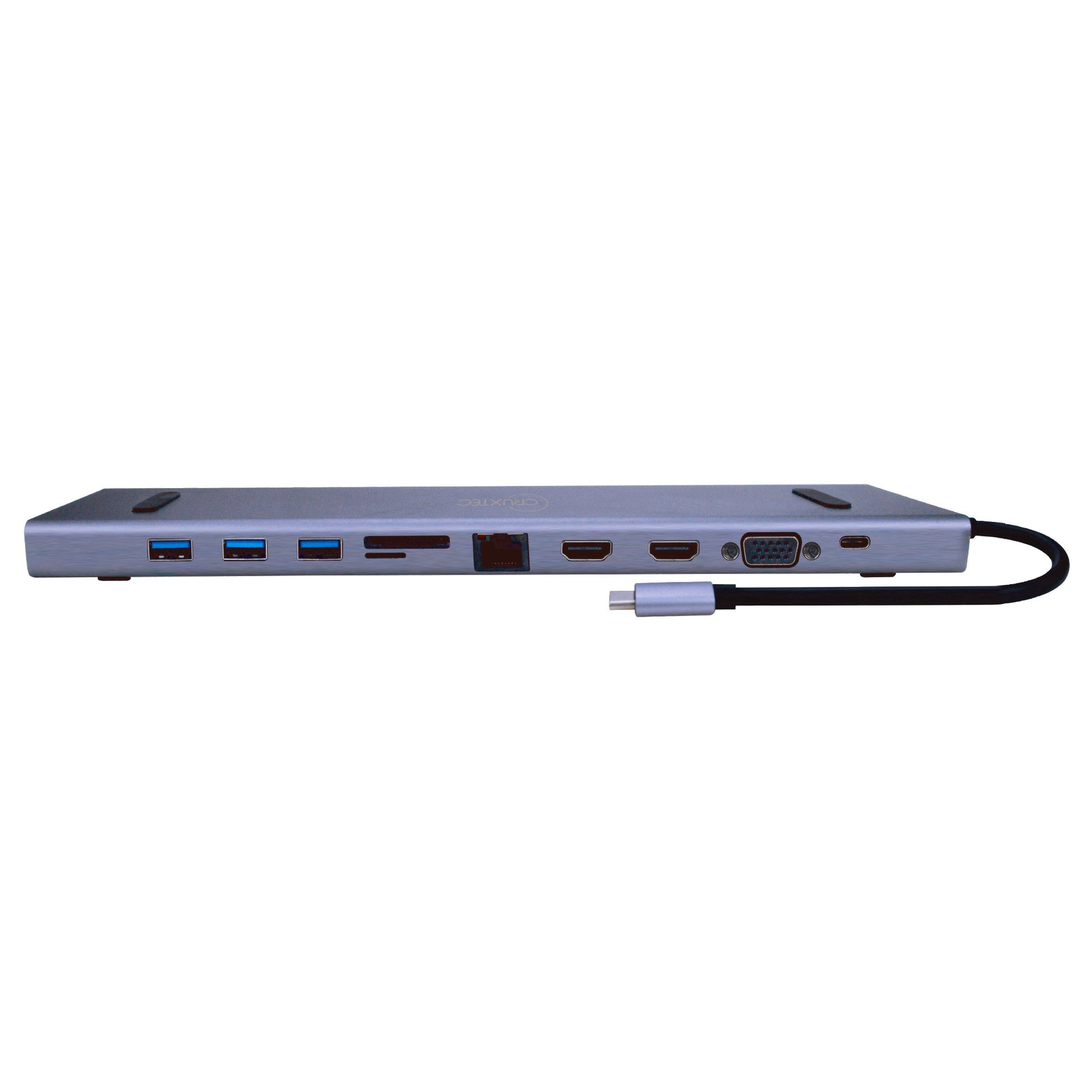

Cruxtec 11 in 1 USB-C Multifunction Docking Station with 100W PD

1) HDMI port supports up to 4K/30Hz, VGA port supports up to 1080p/60Hz

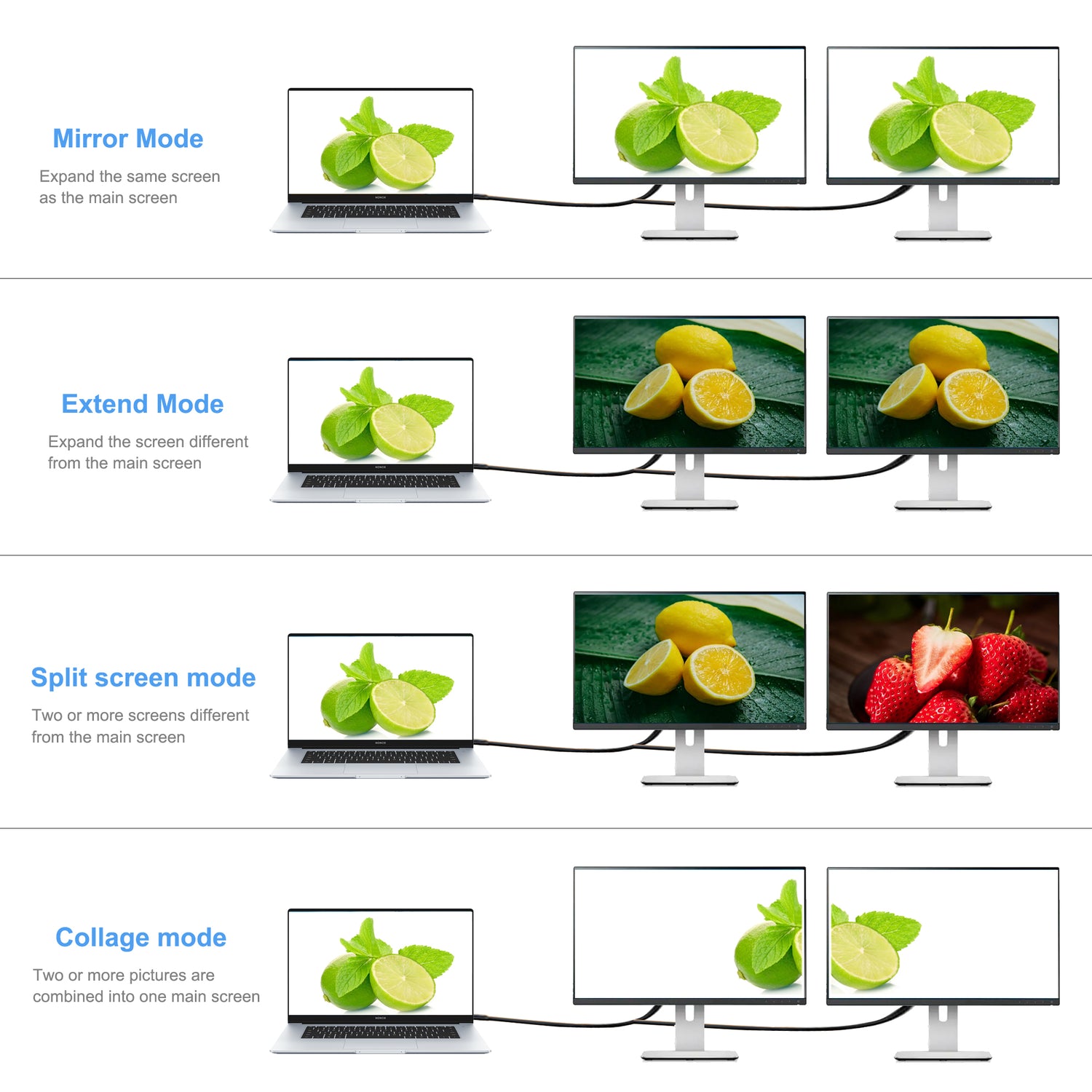

2) Supports Mirror or Extended mode (MST) on Windows
3) USB-C PD port for charging the laptop with up to 100W of power
4) Up to 5Gbps data transfer rate on 3 x USB-A ports
5) Stylish aluminum alloy housing
6) Built-in flexible 15cm Cable
7) Plug-and-play
Regular price $129.00
Regular price Sale price $129.00
Sale Sold out
Tax included.
SKU: CH02-SG

Tech Specs

1) Input: USB-C Male ( USB3.1 GEN2 10GBPS )
2) Output: 2 * HDMI Female / 1* VGA Female / 3 * USB3.0 / 1* RJ45 Gigabit Ethernet (10/100/1000Mbps) / 1 * SD&TF Card Reader / 1 * 3.5mm audio output Jack
3) Power Transmission: 1 * USB-C PD3.0 Charging port - up to 100W
4) Resolution: HDMI output up to 4K/30Hz, VGA output up to 1080p/60Hz
5) MST Configuration: Dual Display (HDMI+HDMI) 1080P/60Hz, Dual Display (HDMI+VGA) 1080P/60Hz , Triple Display(HDMI*2+VGA) 1080P/60Hz*2+800*600
6) Material: Aluminum+ABS
7) Cable Diameter: 4.7mm
8) Cable Length: 15cm
9) Chipsets: RTS5411+LT8712EXI+GL850G+GL823K+RTL8153
10) Colour: Space grey
11) Shield Type: Aluminium foil shield
12) Platforms: Windows / Mac OS

Warranty

1 Year

No reviews

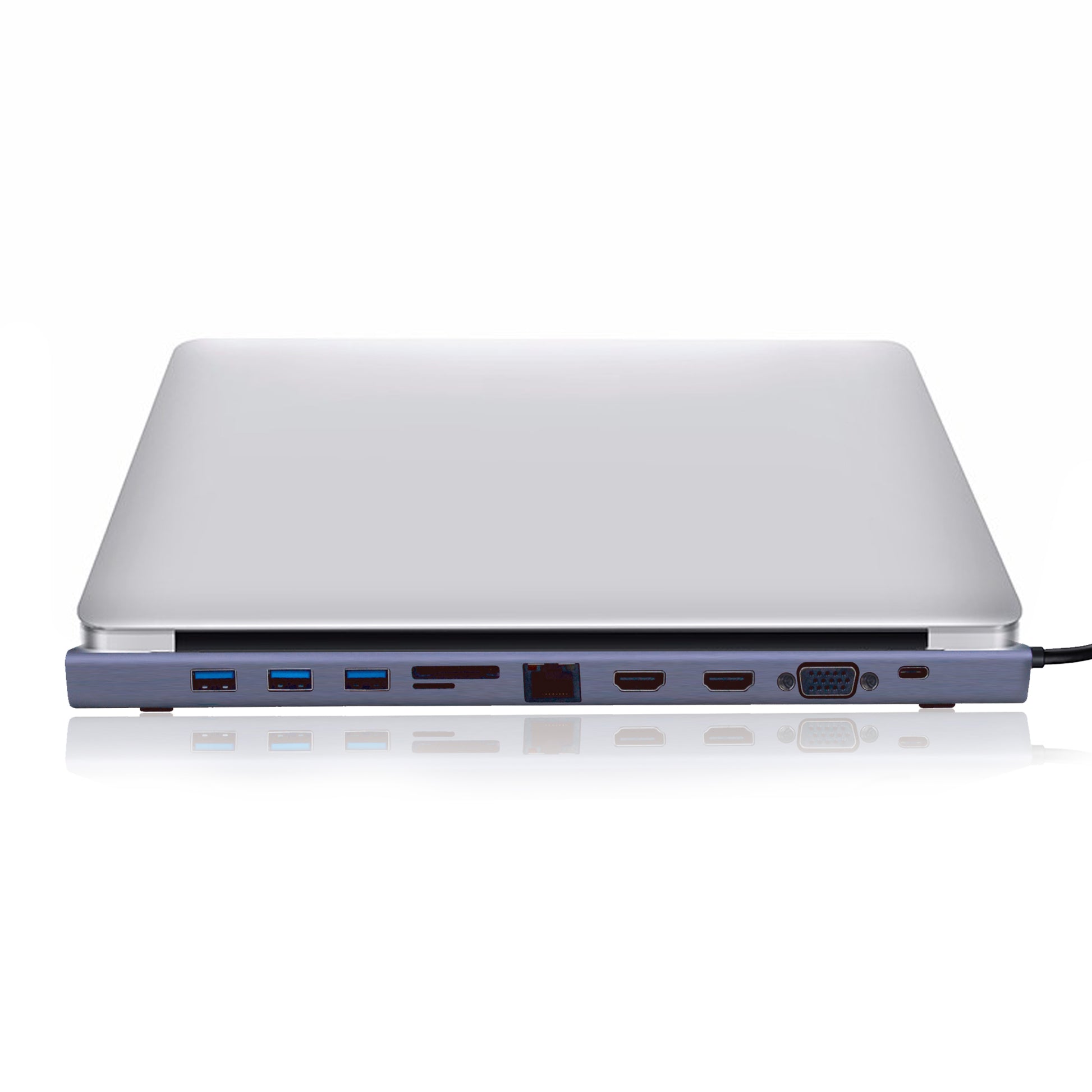

11-in-1 All-in-one Solution

Cruxtec 11 in 1 USB-C Multifunction Docking Station gives you all-in-one solution to connect to monitors, ethernet,SD/TF cards, and more device through USB ports.

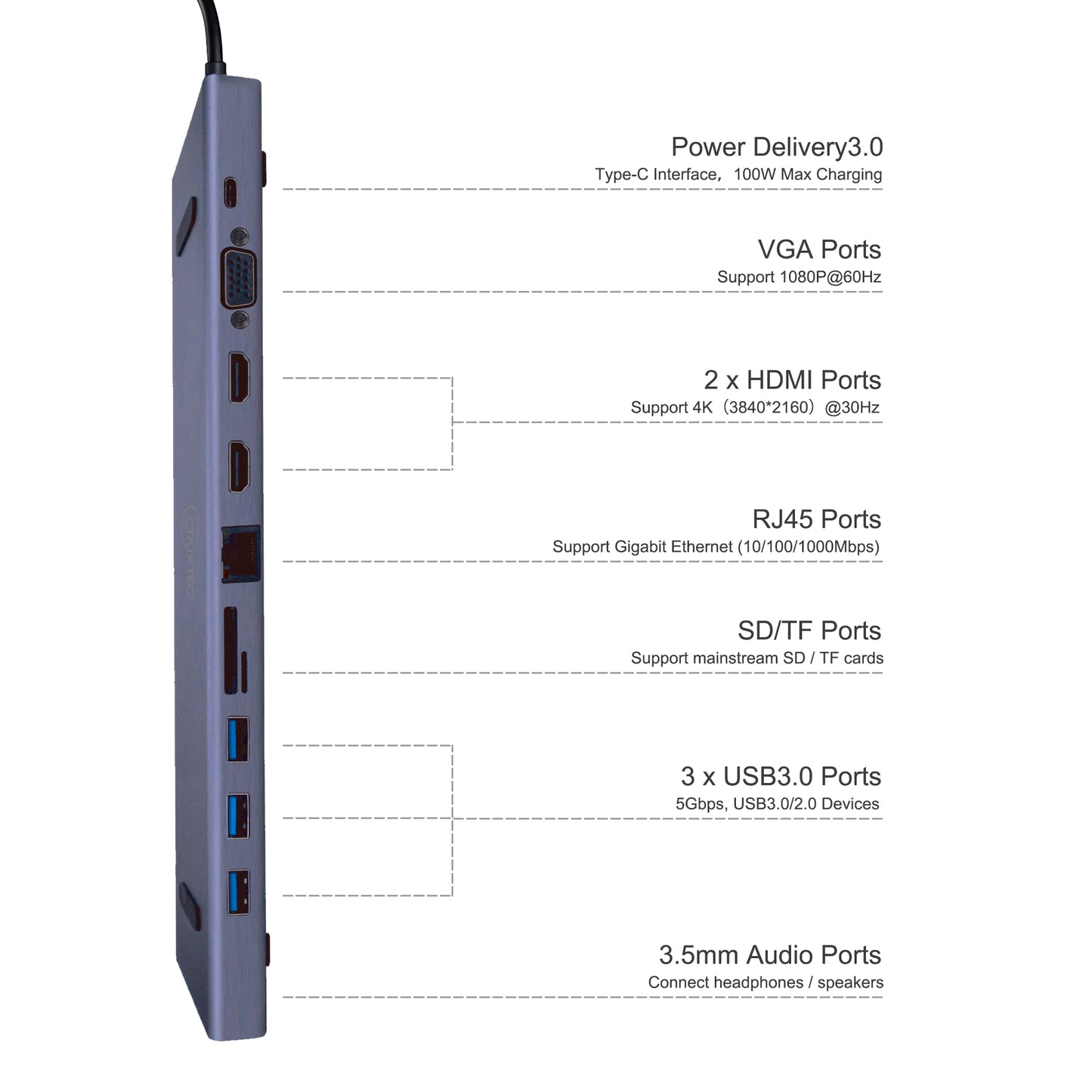

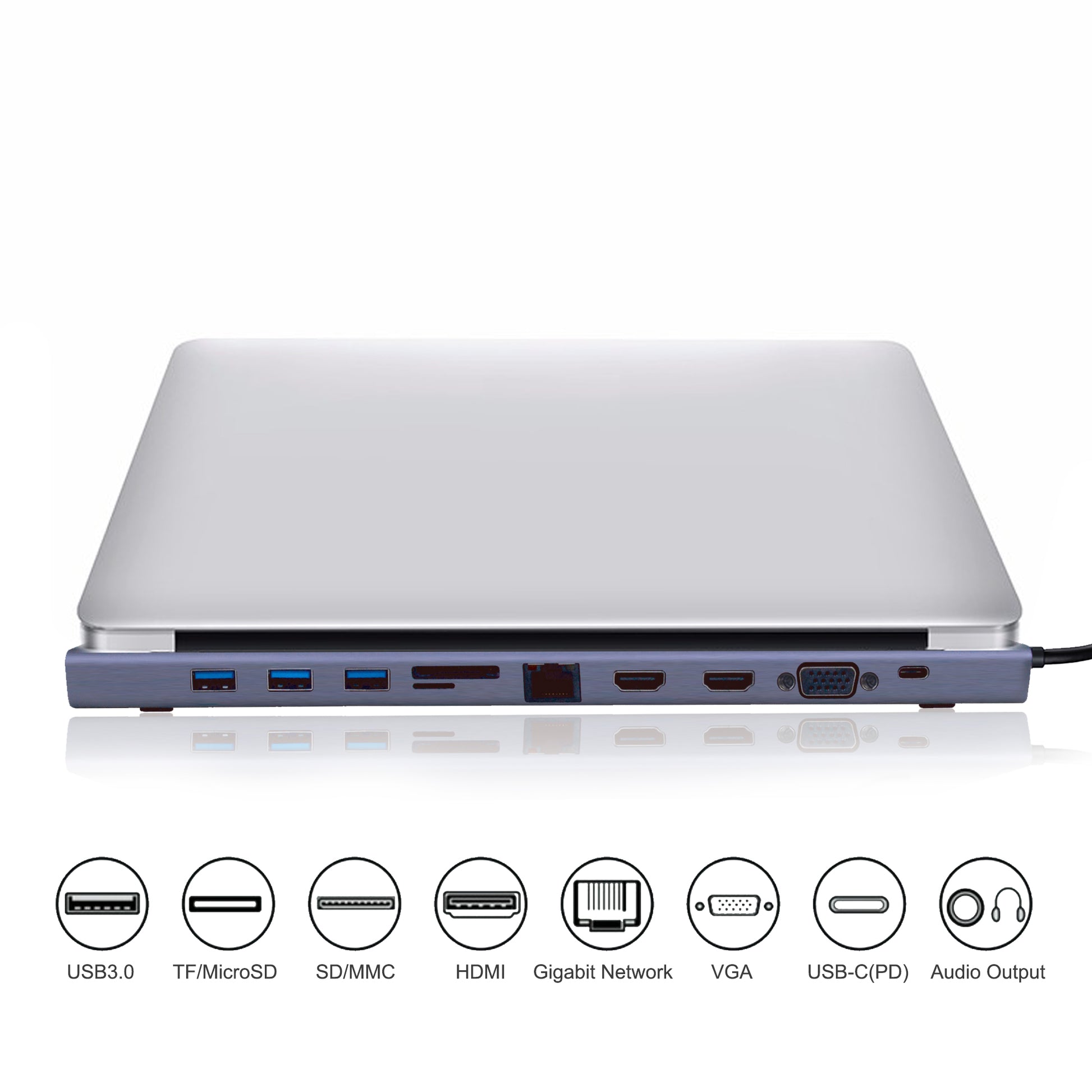

USB-C to 2 x HDMI / VGA / 3 x USB-A / Gigabit Ethernet / SD&TF Card Reader / 3.5mm Audio / up to 100W of USB-C Power Delivery

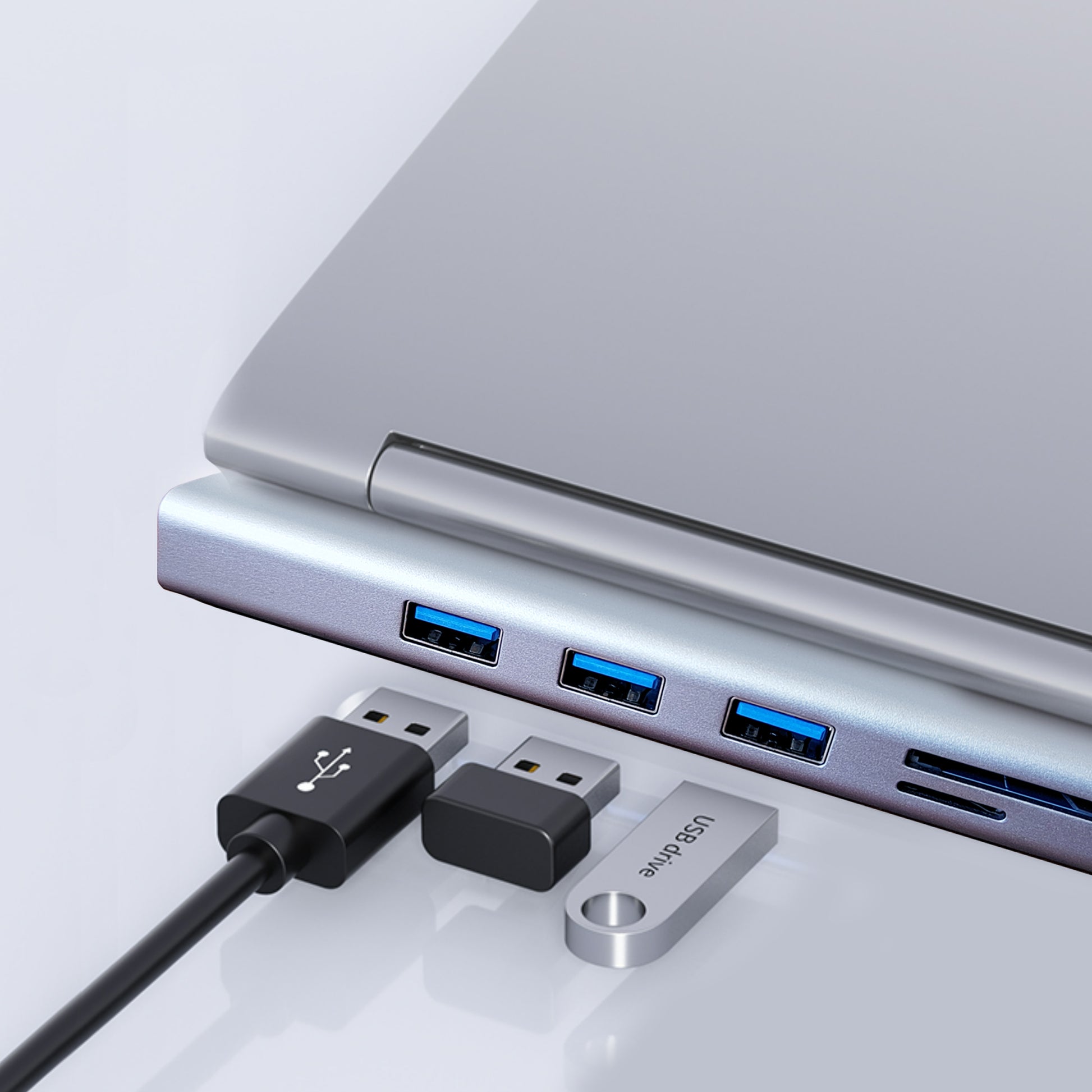

3 x USB3.0 Ports

Supports data transfer speeds up to 5Gbps

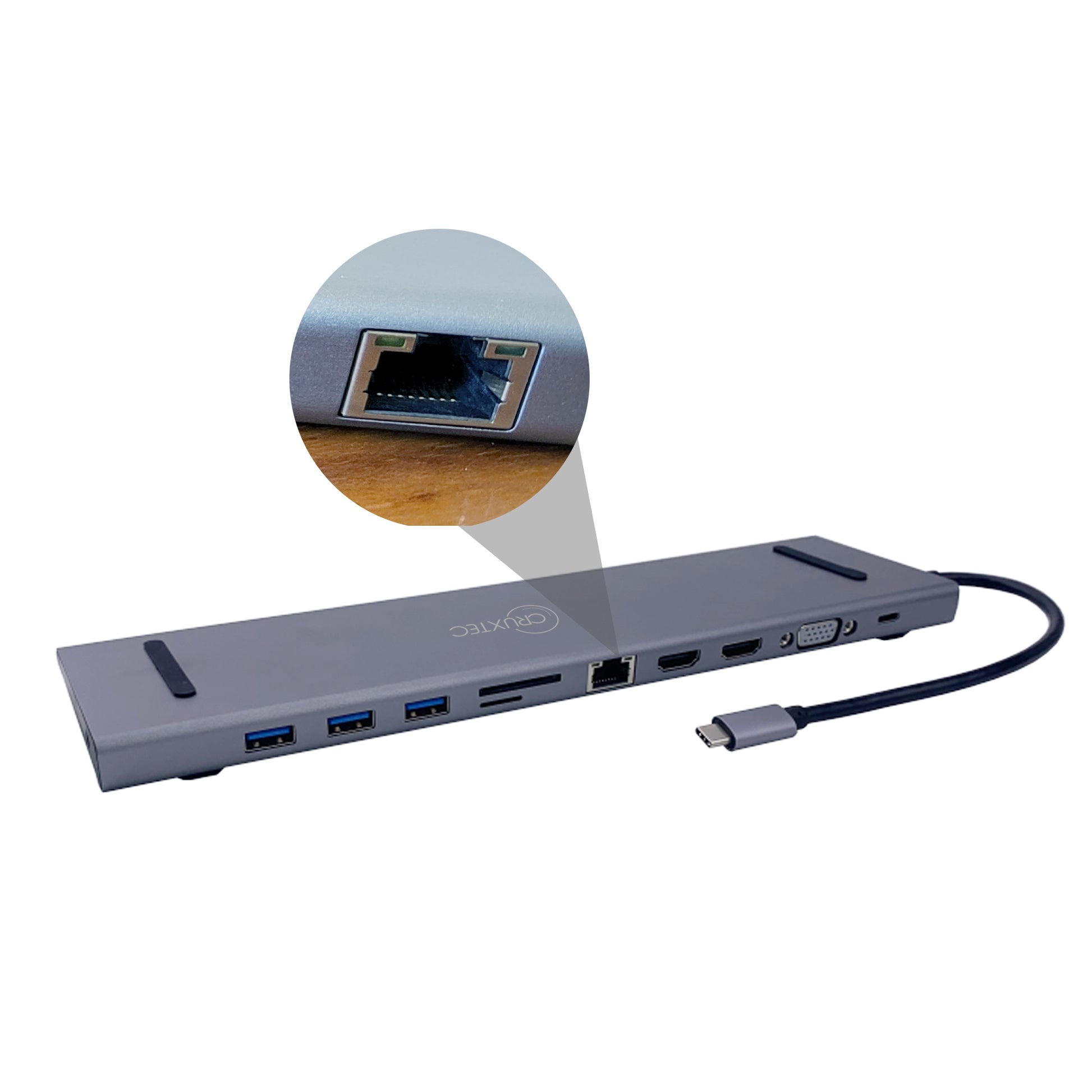

RJ45 Gigabit Ethernet Port

Compatible Networks 10/100/1000 Mbps

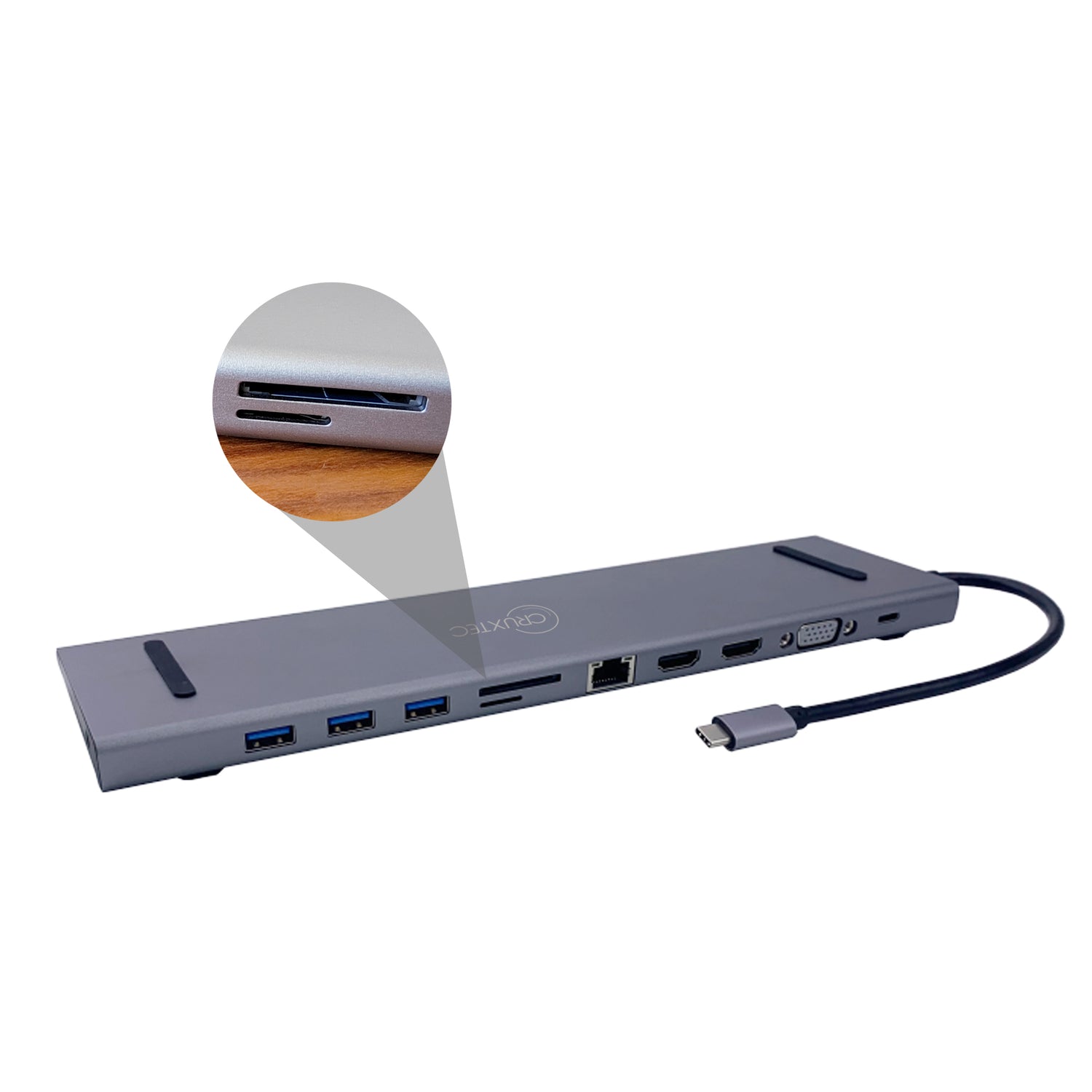

SD&TF Card Reader

Compatibility

Support SD specification v1.0 / v1.1 / v2.0/ SDHC (Up to 32GB)

Support SDXC (Up to 2TB)

Support MMC specification v3.x / v4.0 / v4.1 / v4.2

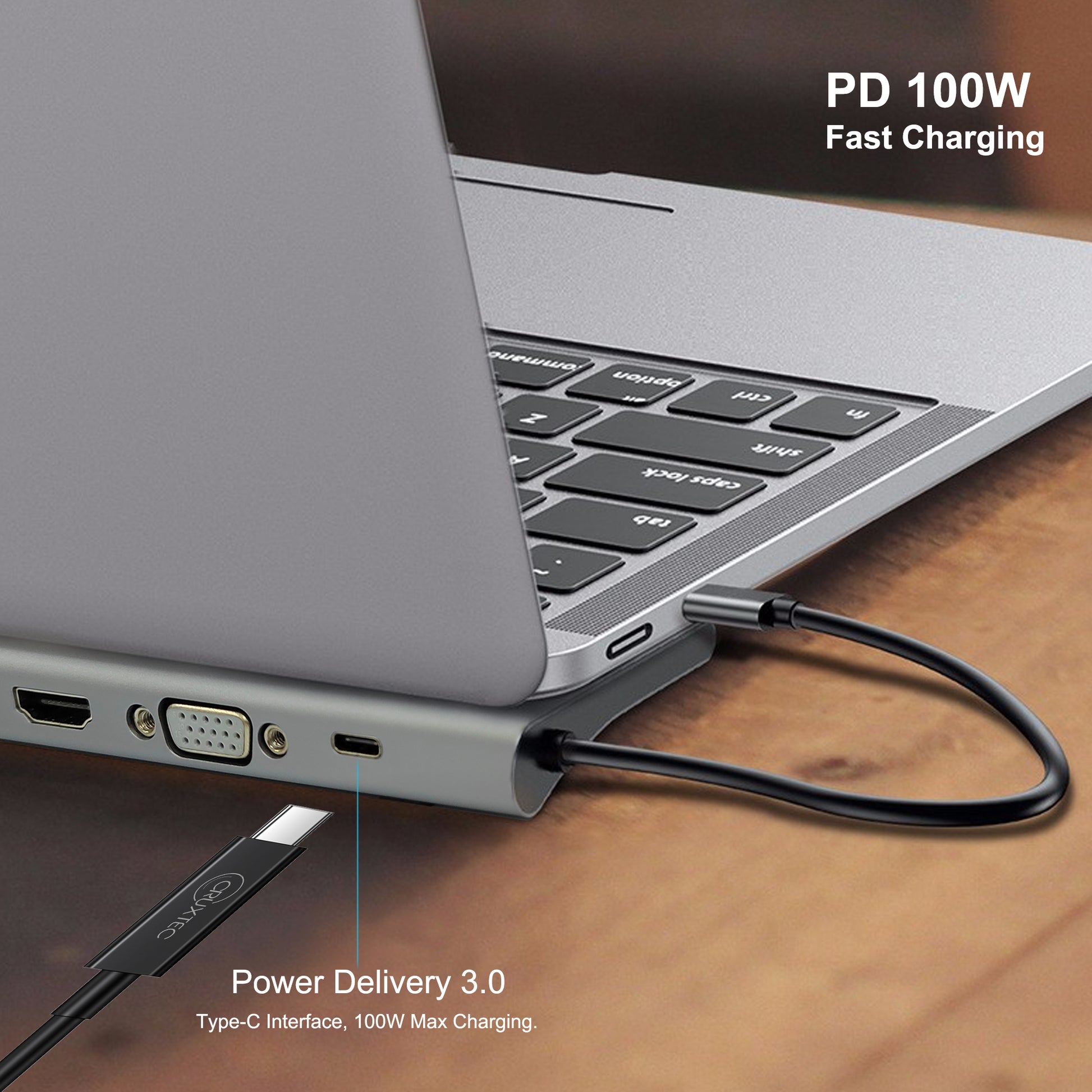

1 x USB-C PD Charging port

USB-C Power Delivery charging up to 100W (charging only, no data)

Suitable for office, home, or personal use

Connect to your devices via VGA or HDMI port

Supports video resolutions up to 4K/30Hz

Maximum resolution support up to 3840x2160P/30Hz or 4096x2160/24Hz when you connect HDMI port only

Maximum resolution support up to 1080P/60Hz when you connect VGA port only

Simple and Elegant Packaging

Imaginative design and new materials are the key to more sustainable

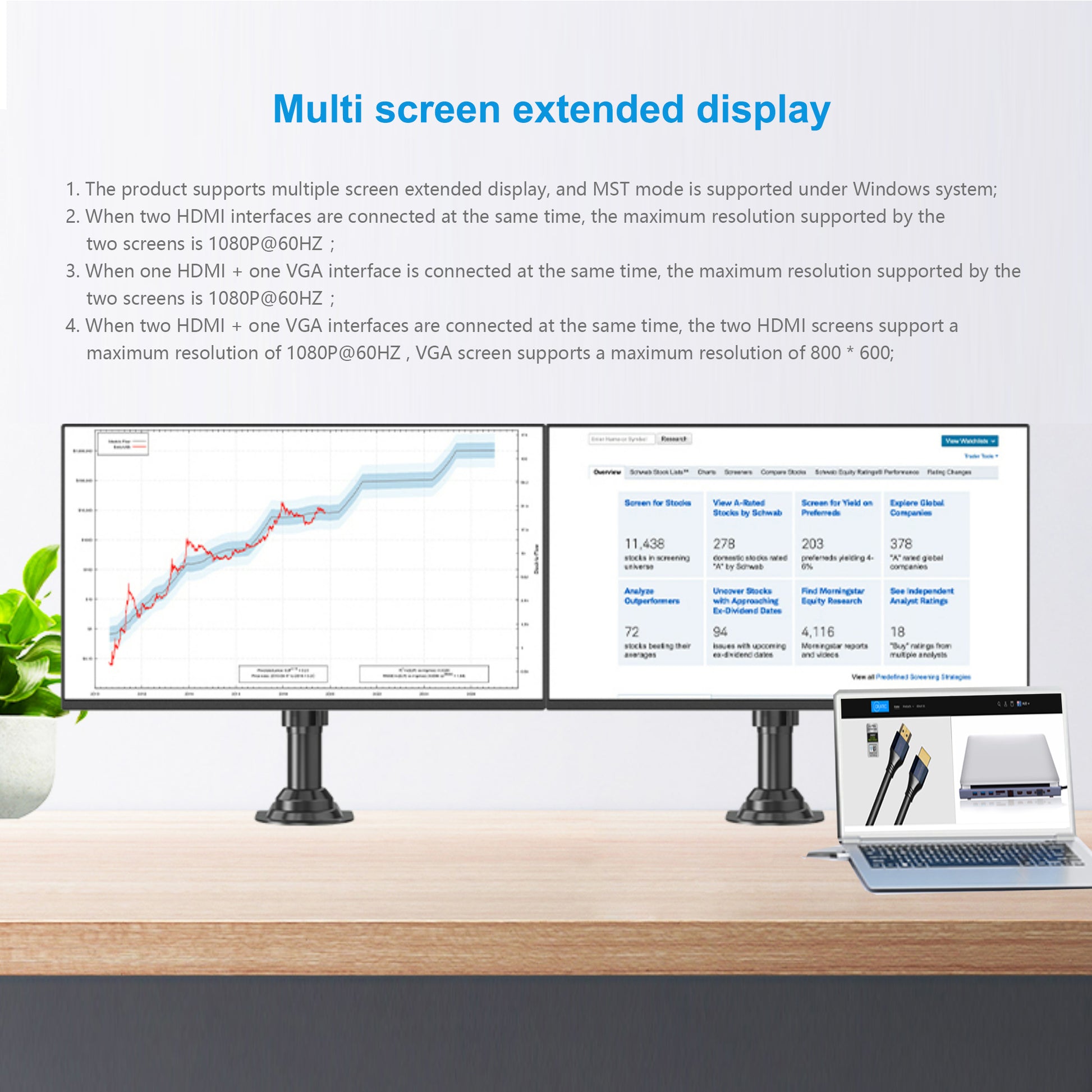

Multi Screen Extended Display

When two HDMI interfaces are connected at the same time, the maximum resolution support by the two screens is 1080P/60Hz

When one HDMI + one VGA interface are connected at the same time, the maximum resolution support by two screens is 1080P/60Hz

When two HDMI + one VGA interface are connected at the same time, the two HDMI screens support a maximum resolution of 1080P/60Hz, VGA screen supports a maximum resolution of 800*600
