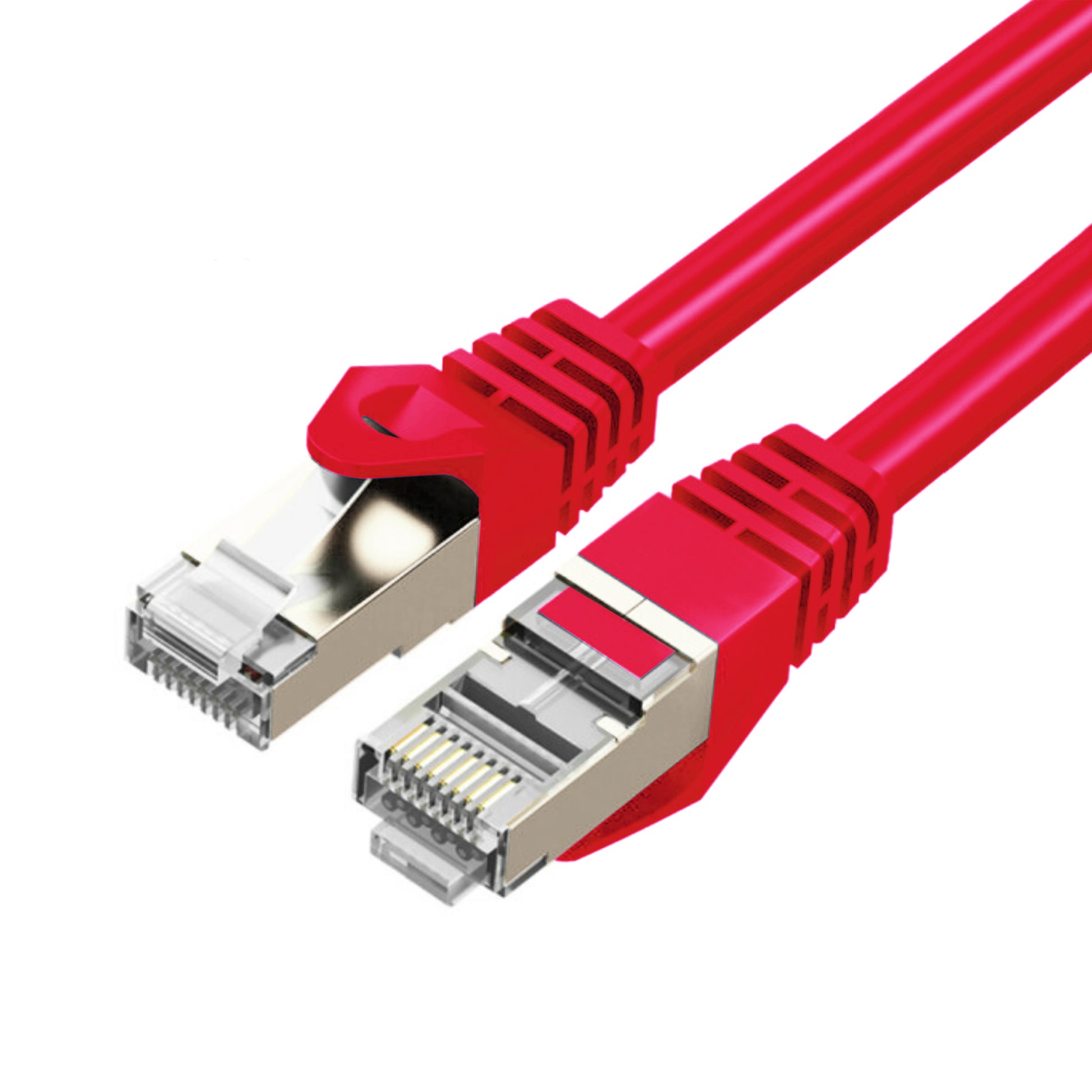

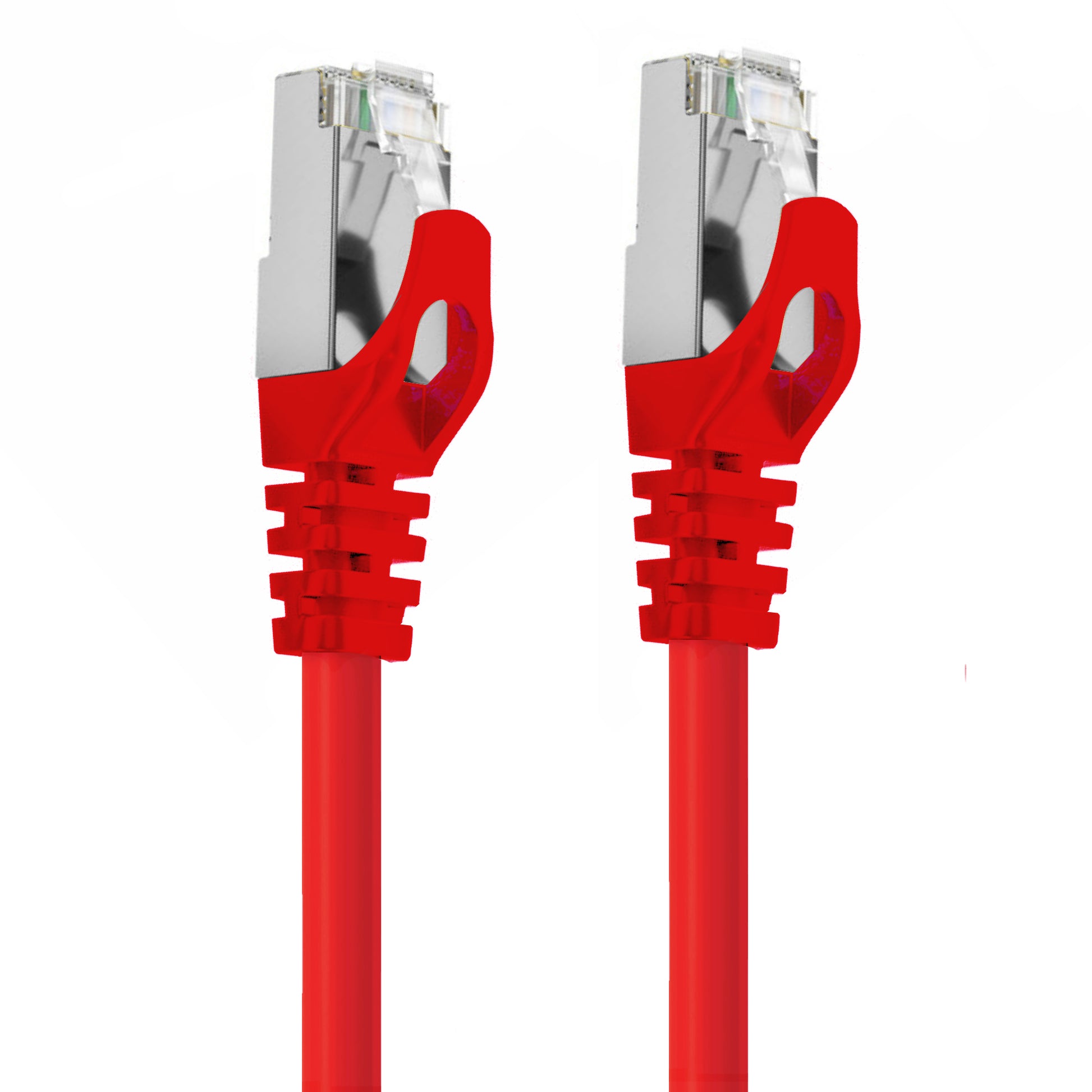

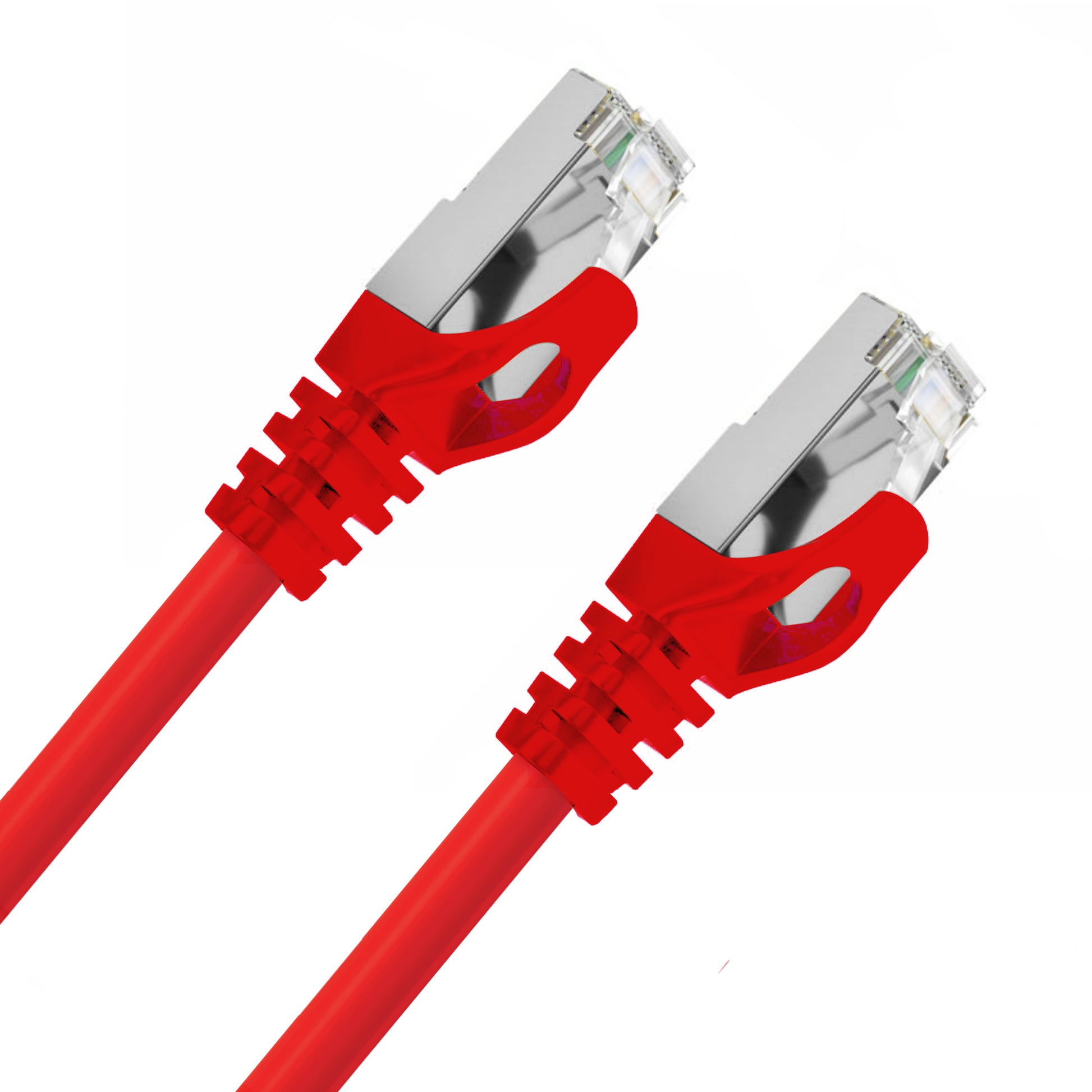

Cruxtec CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red
2) Oxygen-free copper conductor provides stable signal transmission
3) Supports up to 10Gbps transmission speed, 10x compared to Cat6 ethernet cable
4) SF/FTP triple shielding provides the maximum protection from RFI/EMI
5) Fluke Test Passed
Tech Specs
Tech Specs
1) Compliant Standard: TIA-568-C.2-2009, ISO/IEC 11801(Ed. 2.2)
2) Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX, 10GBaseT, PoE, PoE+
3) Conductor Type: BC 4*2*28AWG (7*0.12mm) OFC(Oxygen Free Copper)
4) Shielding Types: SF/FTP Triple Shielding (individual foil shielding twisted pair, overall Aluminum Magnesium braid shielding and Aluminum foil shielding)
5) Connector: Gold-plated RJ45, nickel-plated copper shell
6) Wiring Scheme: T568B
7) Transfer Rate: up to 10Gbps
8) Bandwidth: up to 600MHz
9) Sheath: PVC
10) Insulation: HDPE
11) Outside Diameter: 6.2±0.3mm
12) Minimum Bend Radius: 45.5mm
Warranty
Warranty
Life Time
![Cruxtec CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red](http://www.hoyunwholesale.com/cdn/shop/products/RS7RD_1_1445x.jpg?v=1664844028)
![Cruxtec CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red](http://www.hoyunwholesale.com/cdn/shop/products/RS7RD_2_1445x.jpg?v=1664844028)
![Cruxtec CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red](http://www.hoyunwholesale.com/cdn/shop/products/RS7RD_3_1445x.jpg?v=1664844029)
![Cruxtec CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red](http://www.hoyunwholesale.com/cdn/shop/products/RS7RD_4_1445x.jpg?v=1664844027)
![Cruxtec CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red](http://www.hoyunwholesale.com/cdn/shop/products/RS7RD_5_1445x.jpg?v=1664844028)
![Cruxtec CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red](http://www.hoyunwholesale.com/cdn/shop/files/RS7RD_7_1445x.jpg?v=1684075995)
![Cruxtec CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red](http://www.hoyunwholesale.com/cdn/shop/files/RS7RD_8_1445x.jpg?v=1684075996)
![Cruxtec CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red](http://www.hoyunwholesale.com/cdn/shop/files/internalstructure_1445x.jpg?v=1684076007)
![](http://www.hoyunwholesale.com/cdn/shop/files/RS7_RD_2_1500x.jpg?v=1664844243)

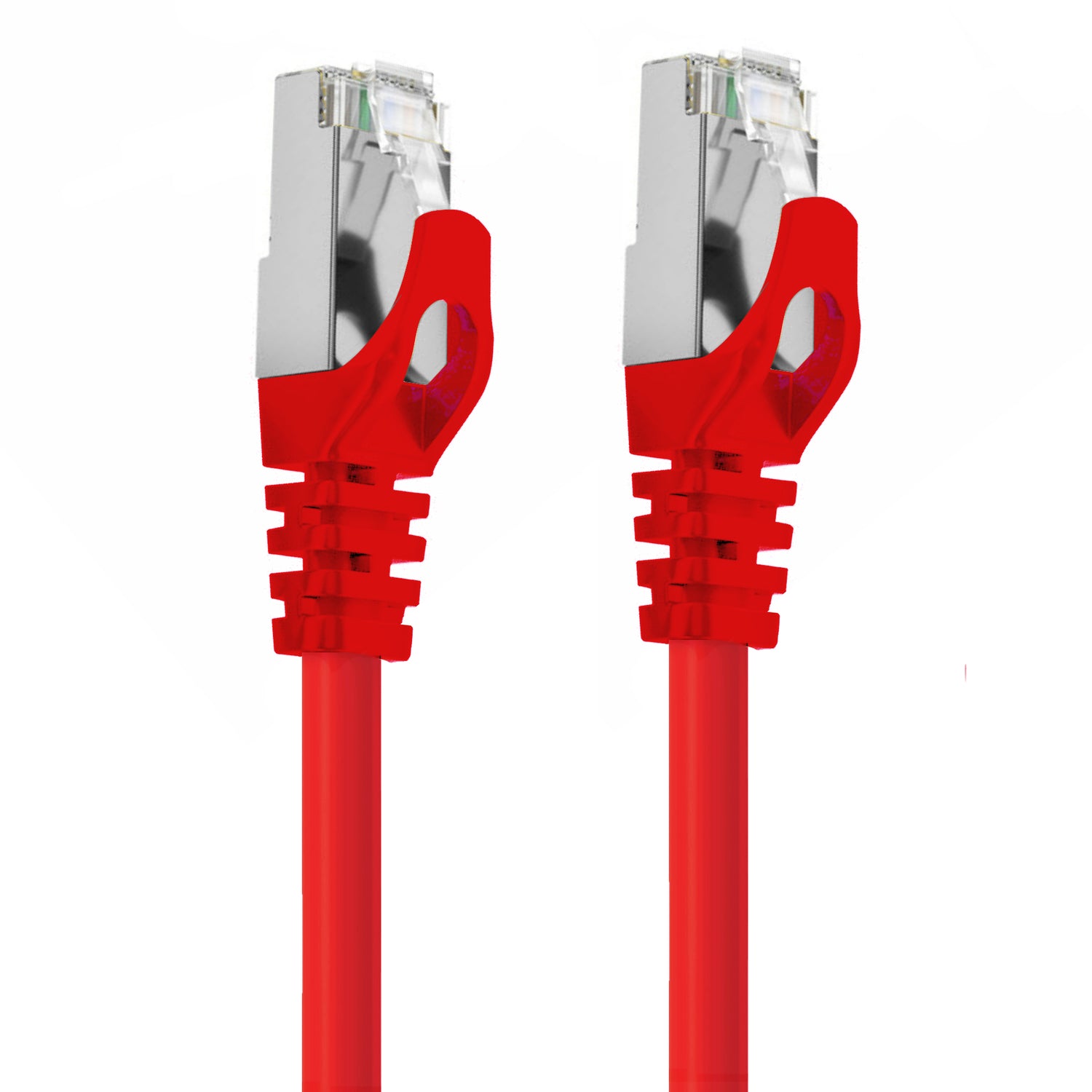

Gold-plated RJ45 Connectors with Nickel-plated Copper Shell
It is highly conductive and durable. Shielded copper shell nickel plated protects the cable from external Electro-Magnetic Interference (EMI).
![](http://www.hoyunwholesale.com/cdn/shop/files/751965e6a9644e45758e4e58b94ca2f_1500x.jpg?v=1653626654)

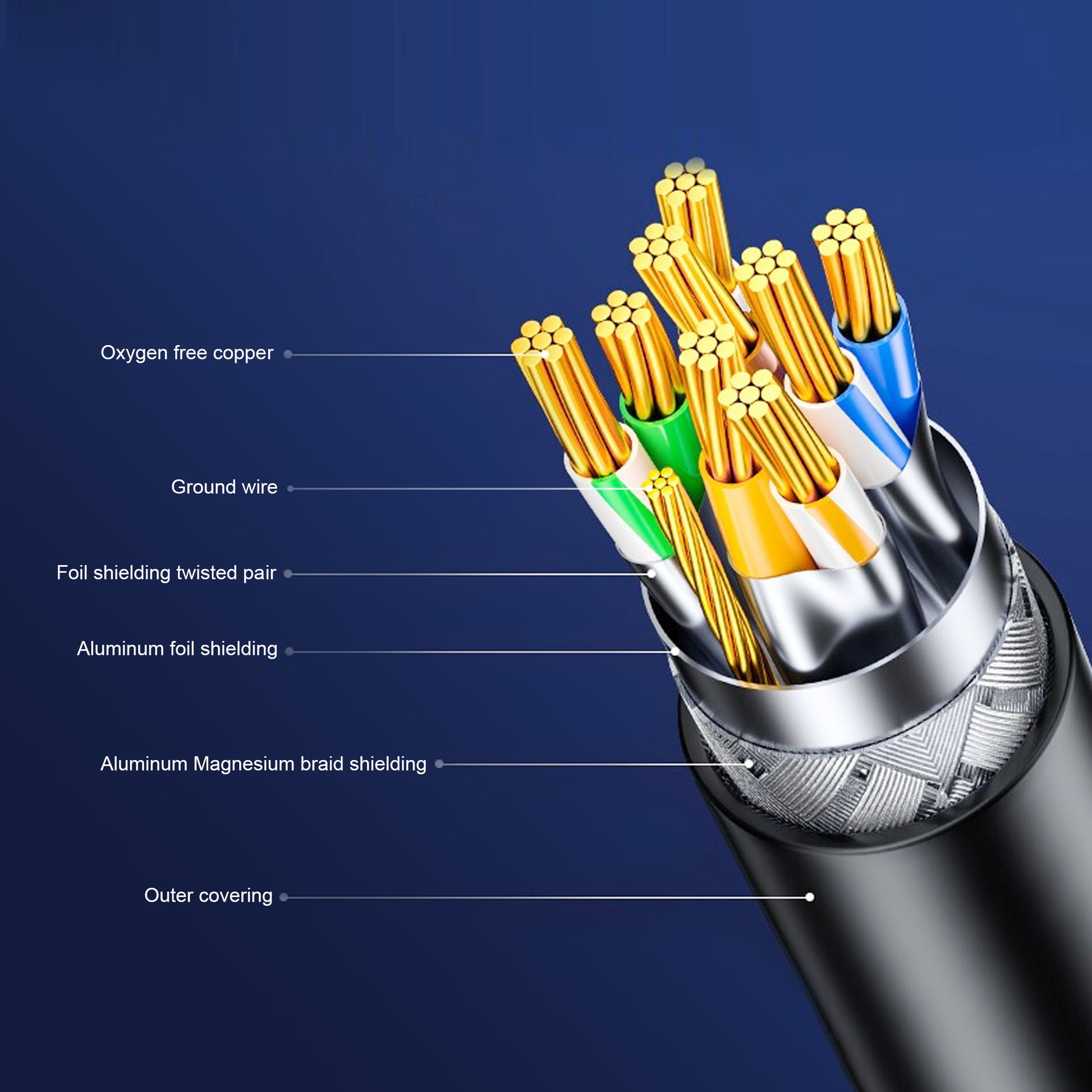

SF/FTP triple shielding provides the maximum protection from RFI/EMI
Individual foil shielding twisted pair, overall Aluminum Magnesium braid shielding and Aluminum foil shielding.
![](http://www.hoyunwholesale.com/cdn/shop/files/CAT7____3_1500x.jpg?v=1653538912)
Fluke Test Passed
The standard of quality guarantees for ethernet cable.
![](http://www.hoyunwholesale.com/cdn/shop/files/tu5jJDEwLmFsaWNkbi5jb20vaTEvMjkxNTA5MTY0L1RCMk42OW5GOXRZQmVOalNzcGFYWGFPT0ZYYV8hITI5MTUwOTE2NCQ5_a30ffcac-b602-4e47-a873-1c217667be96_1500x.jpg?v=1653787683)
Oxygen Free Copper Conductor
Provides stable signal transmission, more durable and long-lasting, and is far less likely to corrode, due to the reduced oxygen content.
![](http://www.hoyunwholesale.com/cdn/shop/files/RS7_RD_3_1500x.jpg?v=1664844255)
Press type buckle
Flexible and easy to use, soft, smooth and stable.
![](http://www.hoyunwholesale.com/cdn/shop/files/RS7_RD_6_1500x.jpg?v=1664844910)

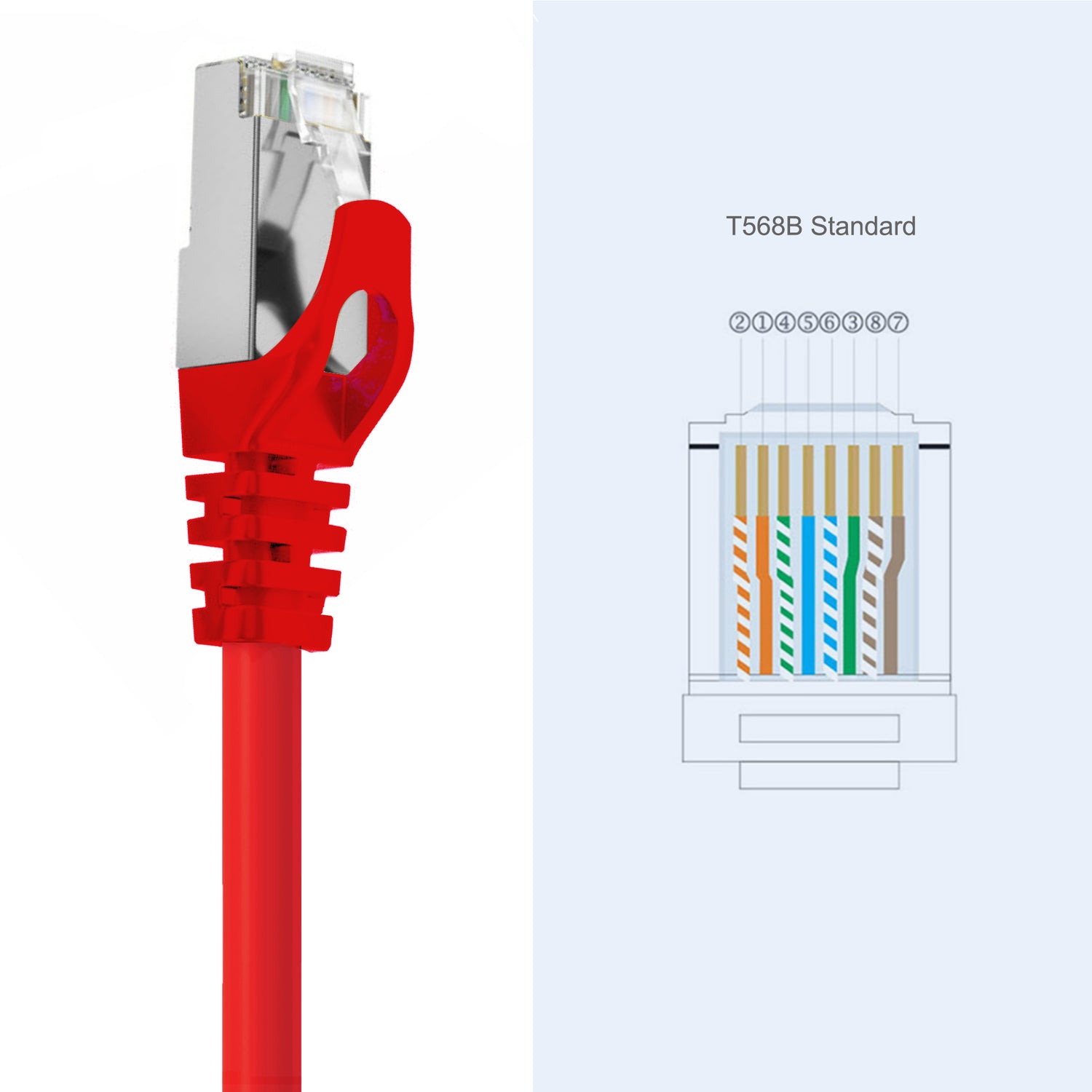

Wiring Scheme: T568B
![](http://www.hoyunwholesale.com/cdn/shop/files/RS7_YE_7_1500x.jpg?v=1664843773)

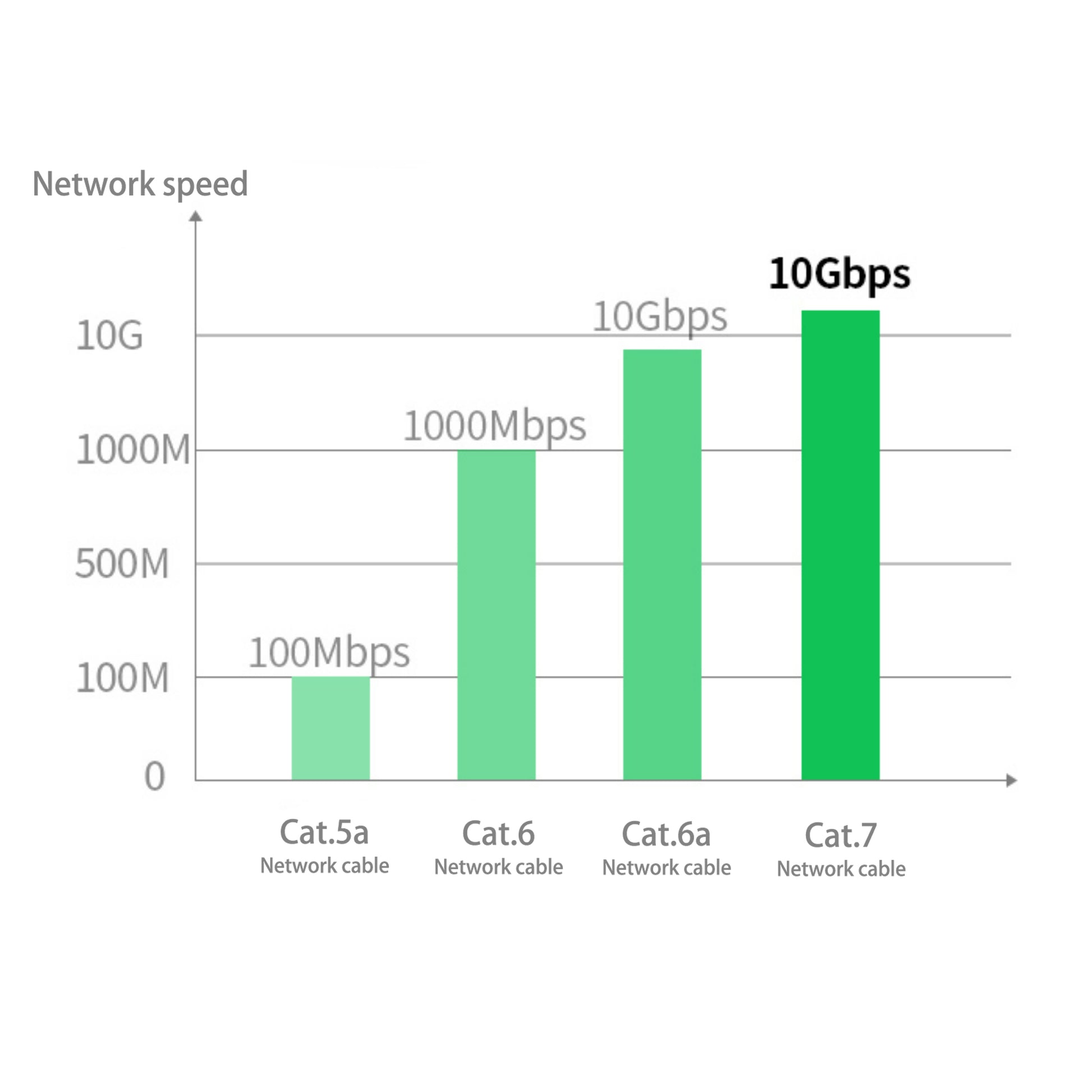

Supports up to 10Gbps transmission speed
10x compared to Cat6 ethernet cable.
![](http://www.hoyunwholesale.com/cdn/shop/files/RS7_rd_1500x.jpg?v=1665655148)
Simple and Elegant Packaging
Imaginative design and new materials are the key to more sustainable.
